powerbook G4 titanium



Minimum OS: 9.2.1

Maximum OS: 10.4.11

Introduced: Oct 2001

Terminated: Nov 2002



Processor

CPU: PowerPC 7450 "G4"

CPU Speed: 400/500/550/667/800/867/1000 MHz

FPU: integrated

Bus Speed: 100/133 MHz

Register Width: 32-bit

Data Bus Width: 64-bit

Address Bus Width: 32-bit

Level 1 Cache: 32 kB data, 32 kB instruction

Level 2 Cache: 256 kB on-processor

ROM: 1 MB ROM + 3 MB toolbox ROM loaded into RAM

RAM Type: PC133 SO-DIMM

Min RAM Speed: 133 MHz

Onboard RAM: 0 MB

RAM slots: 2

Maximum RAM: 1 GB

Expansion Slots: 1 PC Card (Type I or II)



Video

Screen: 15.2" active matrix TFT

Monitor: 24 bit 1152x768

GPU: ATI Radeon Mobility 4x AGP

VRAM: 16 MB

Video Out: VGA, S-Video



Storage

Hard Drive: 20 GB (550 MHz)/30 GB (667 MHz) /48 GB BTO

ATA Bus: ATA-66

Optical Drive: 6X DVD-ROM or 24x8x4x4x CD-RW/DVD-ROM

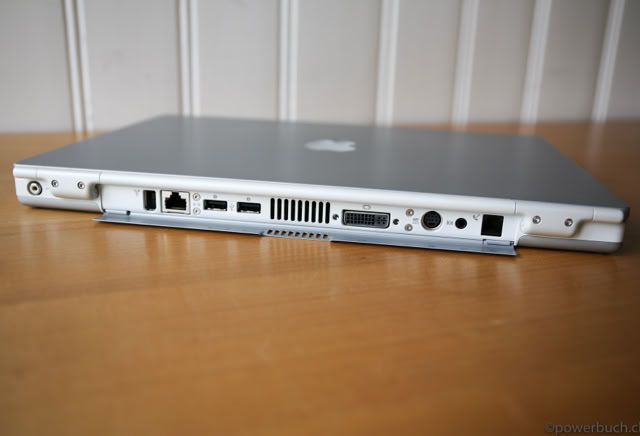

Input/Output

USB: 2

Firewire: 1

Audio Out: 16 bit stereo mini

Speaker: stereo

Microphone: mono

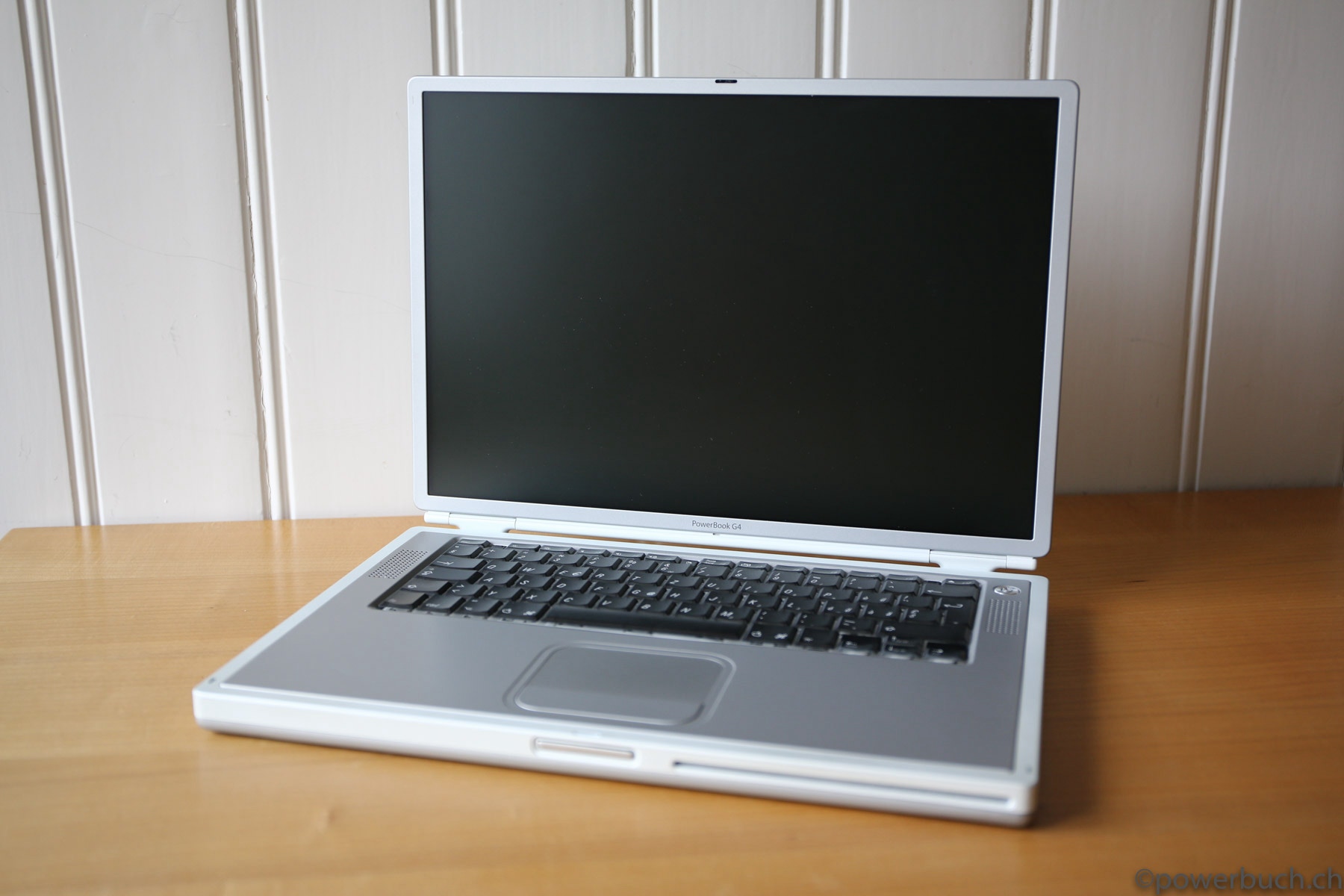

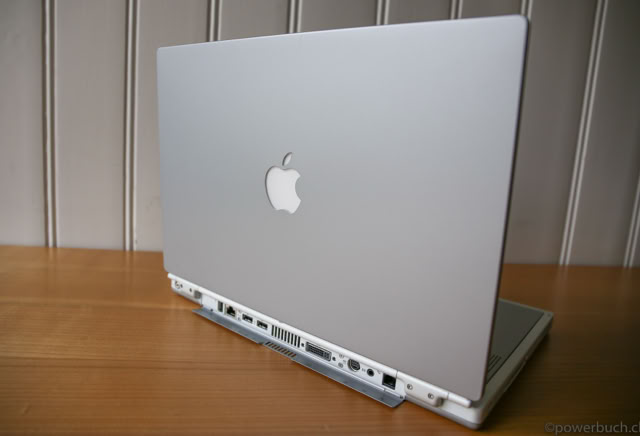

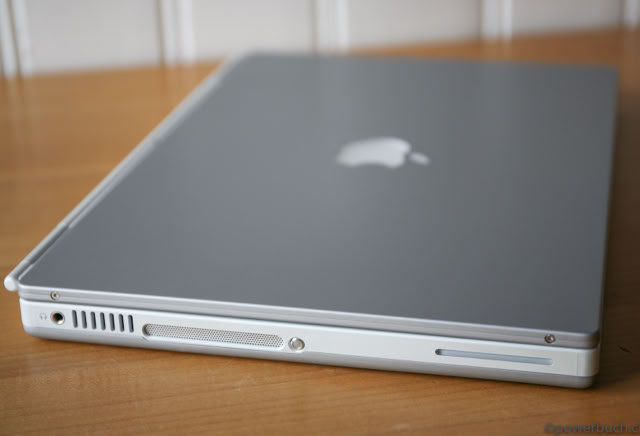

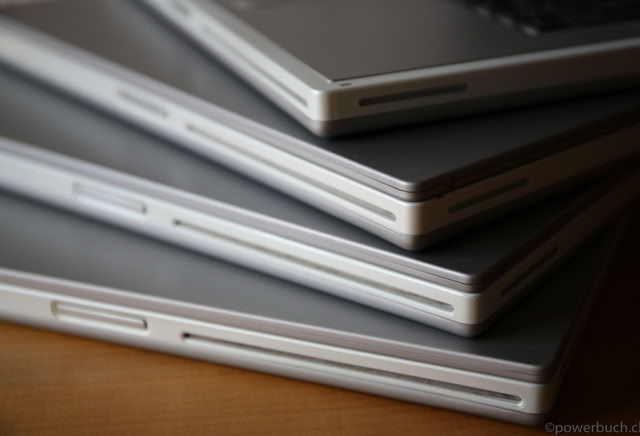

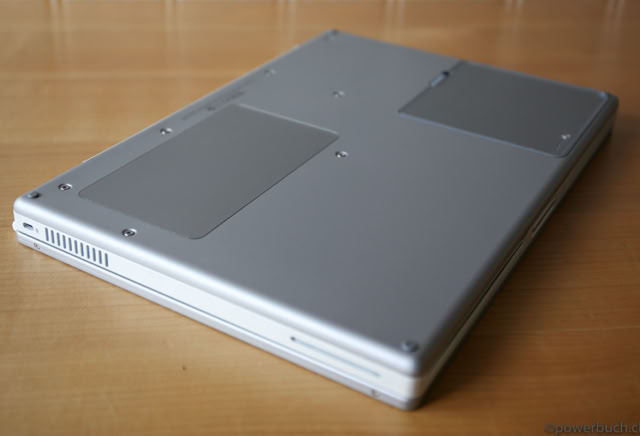

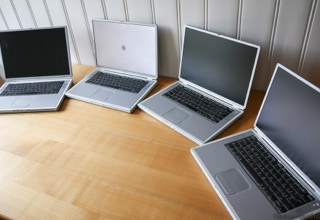

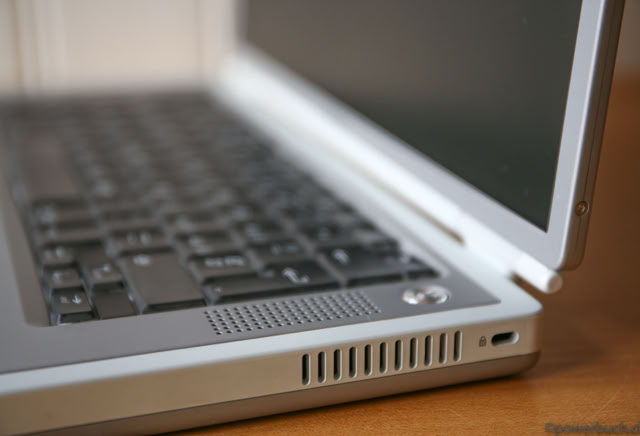

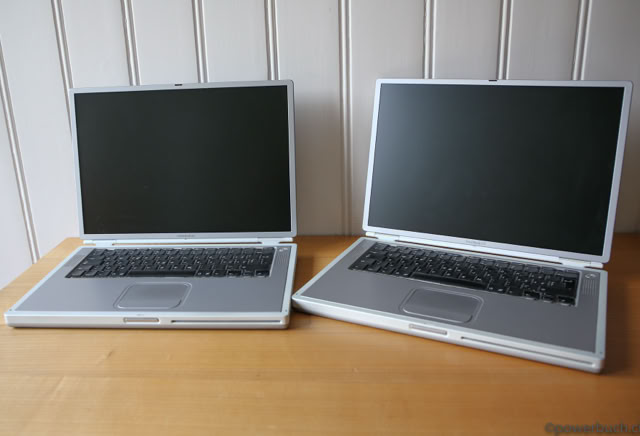

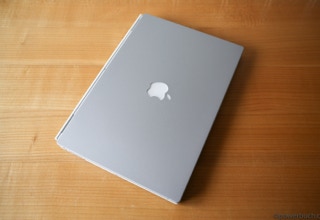

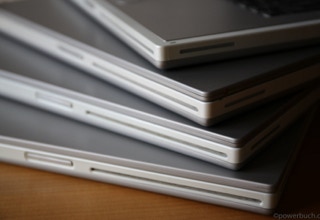

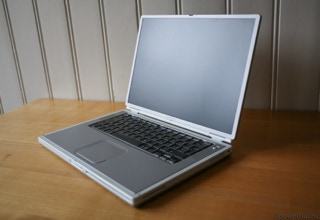

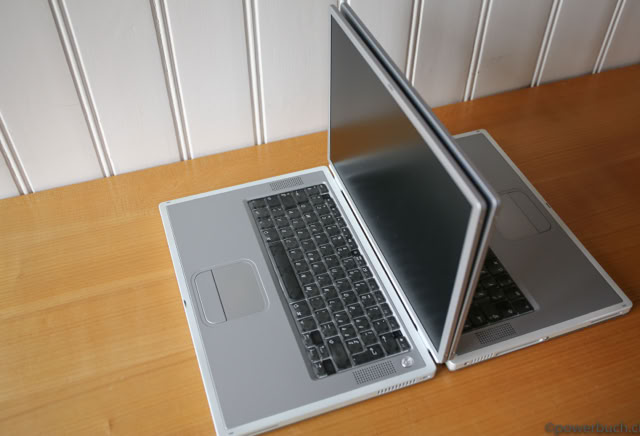

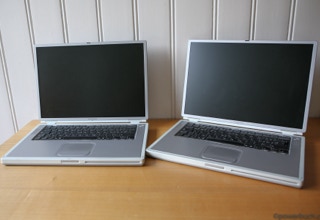

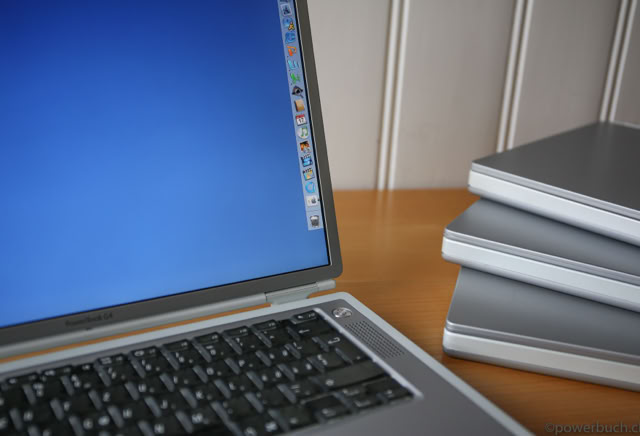

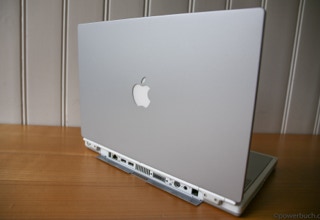

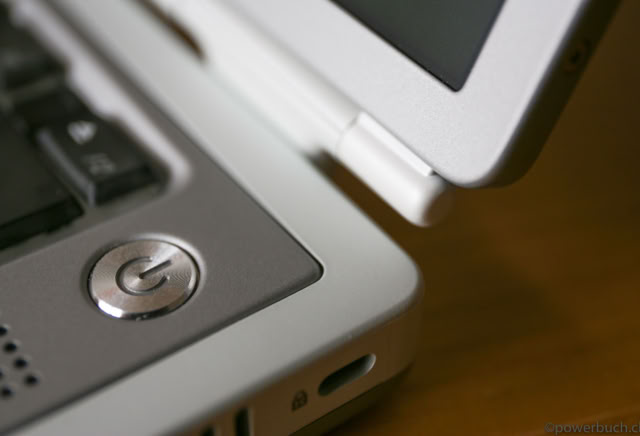

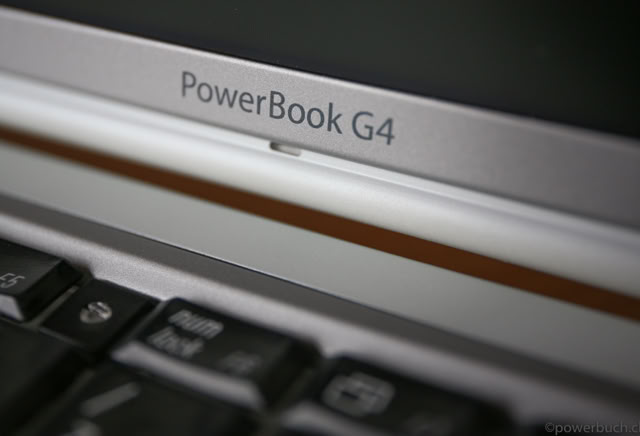

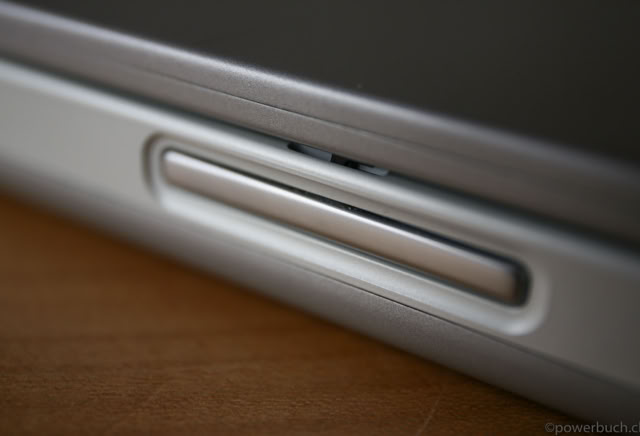

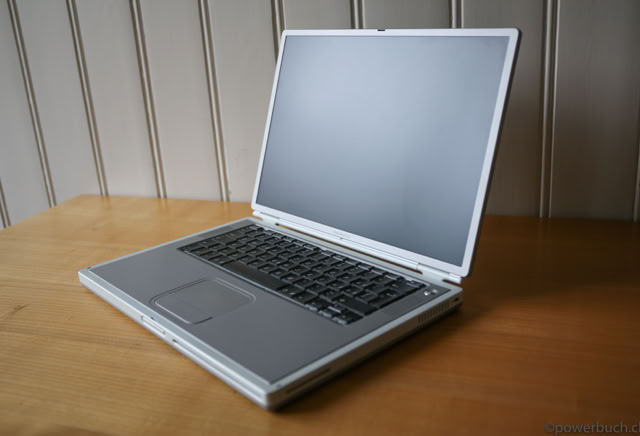

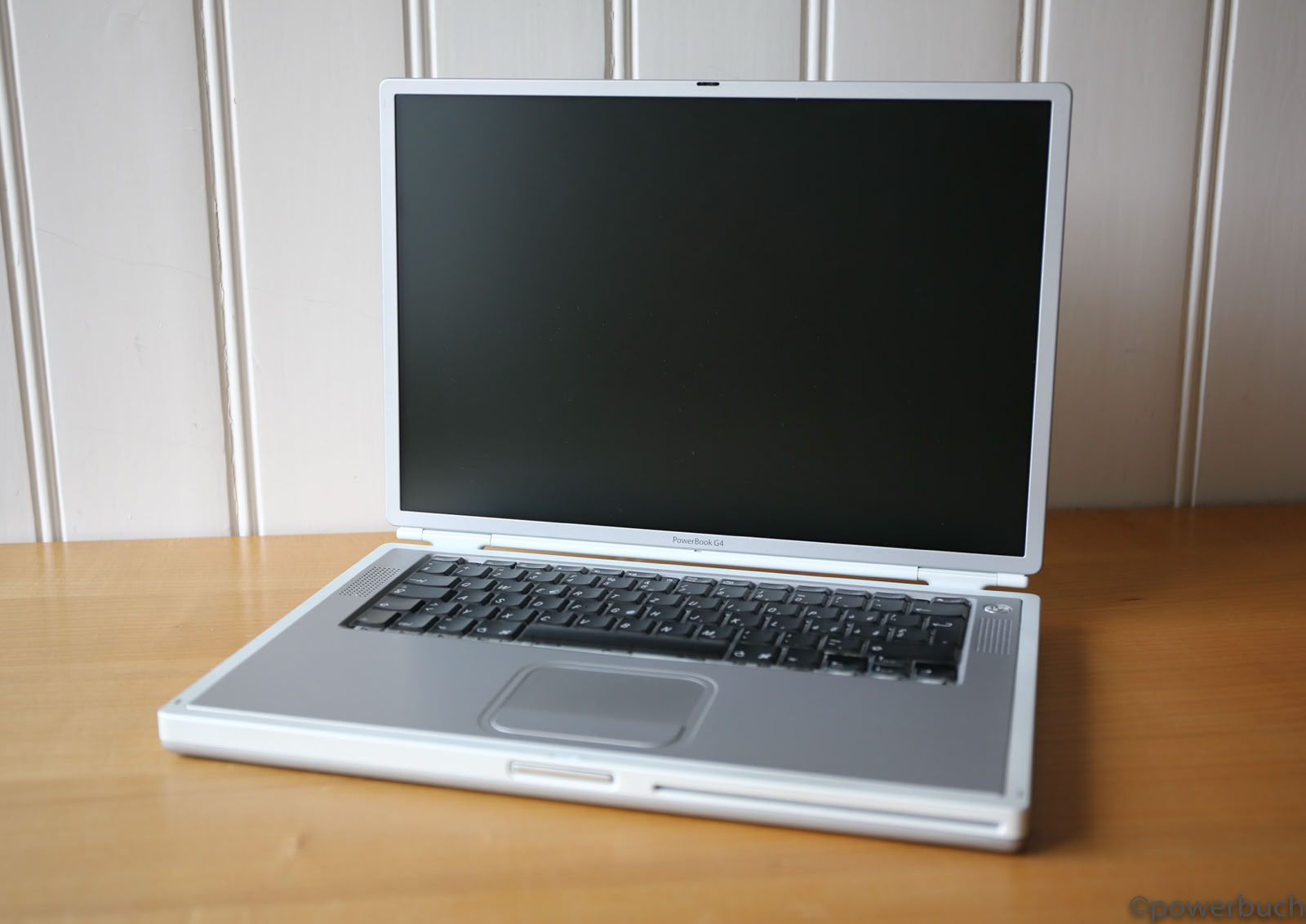

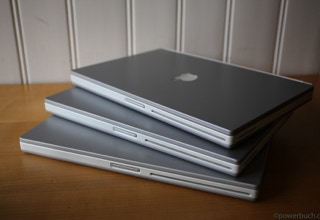

powerbook G4 titanium

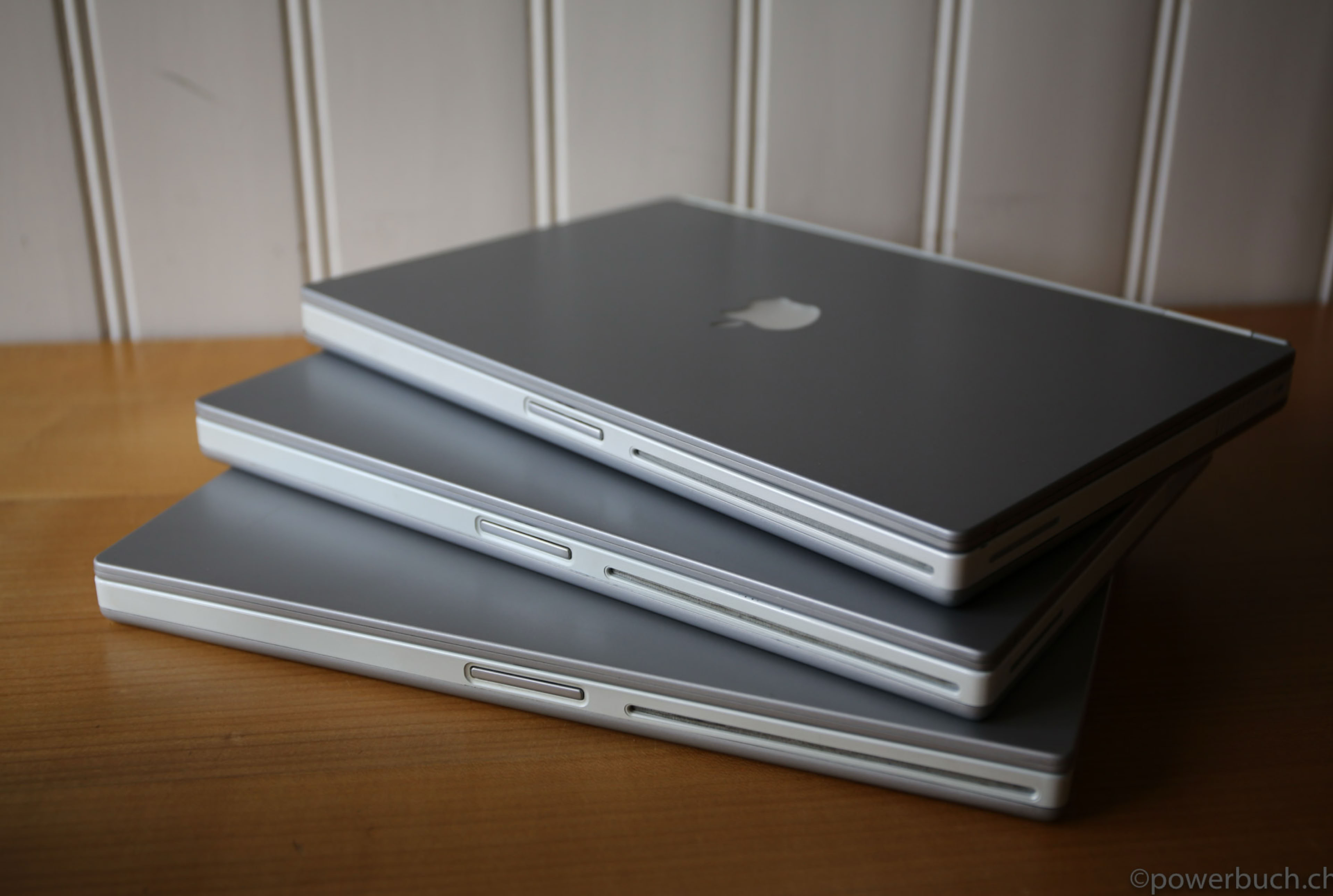

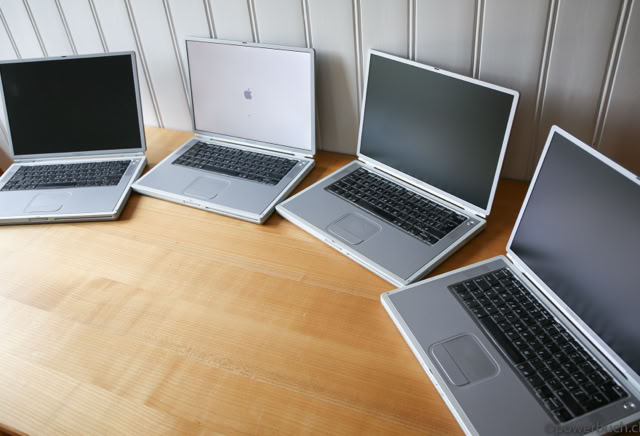

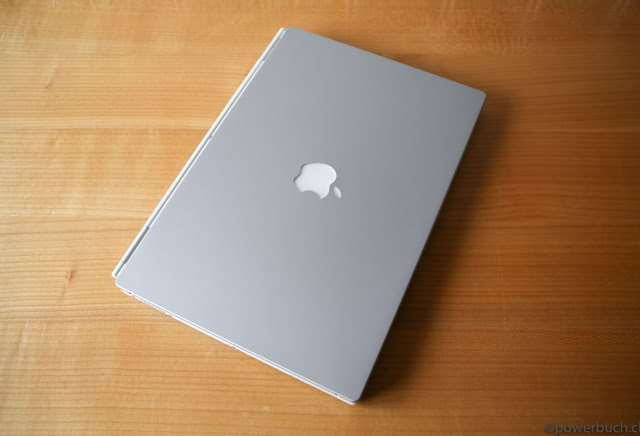

Introduced in January 2001, the powerbook titanium was a completely re-designed notebook with a titanium skin and a 15.2-inch wide-aspect screen suitable for watching widescreen movies. Built with the powerpc G4 processor, it was billed as "the first supercomputer you can actually take with you on an airplane. It was lighter than most pc based laptops, and due to the low power consumption of the powerpc it outlasted them by hours.



The powerbook titanium were released in configurations of 400 MHz, 500 MHz, 550 MHz, 667 MHz, 800 MHz, 867 MHz, and 1 GHz. They are the last powerbooks able to boot macos 9.
