powerbook duo 230



Minimum OS: 7.1

Maximum OS: 7.6.1

Introduced: October 1992

Terminated: July 1994



Processor

CPU: Motorola MC68030

CPU Speed: 33 MHz

FPU: none

Bus Speed: 33 MHz

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

Level 1 Cache: 256 bytes data, 256 bytes instruction

ROM: 1 MB

RAM Type: unique

Min RAM Speed: 70 ns

Onboard RAM: 4 MB

RAM slots: 1

Maximum RAM: 24 MB

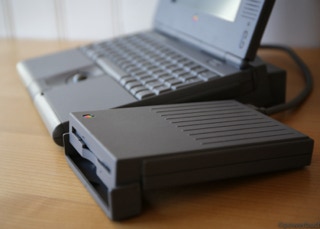

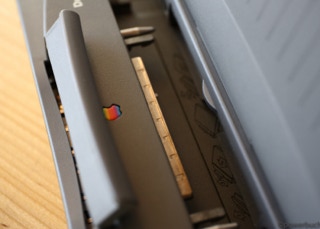

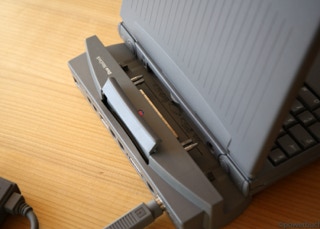

Expansion Slots: modem, Dock (152-pin PDS)



Video

Screen: 9" supertwist grayscale LCD

Max Resolution: 4-bit 640x400



Storage

Hard Drive: 80 MB



Input/Output

Serial: 1 Mini DIN-8

Speaker: mono 8 bit

Microphone: mono 8 bit

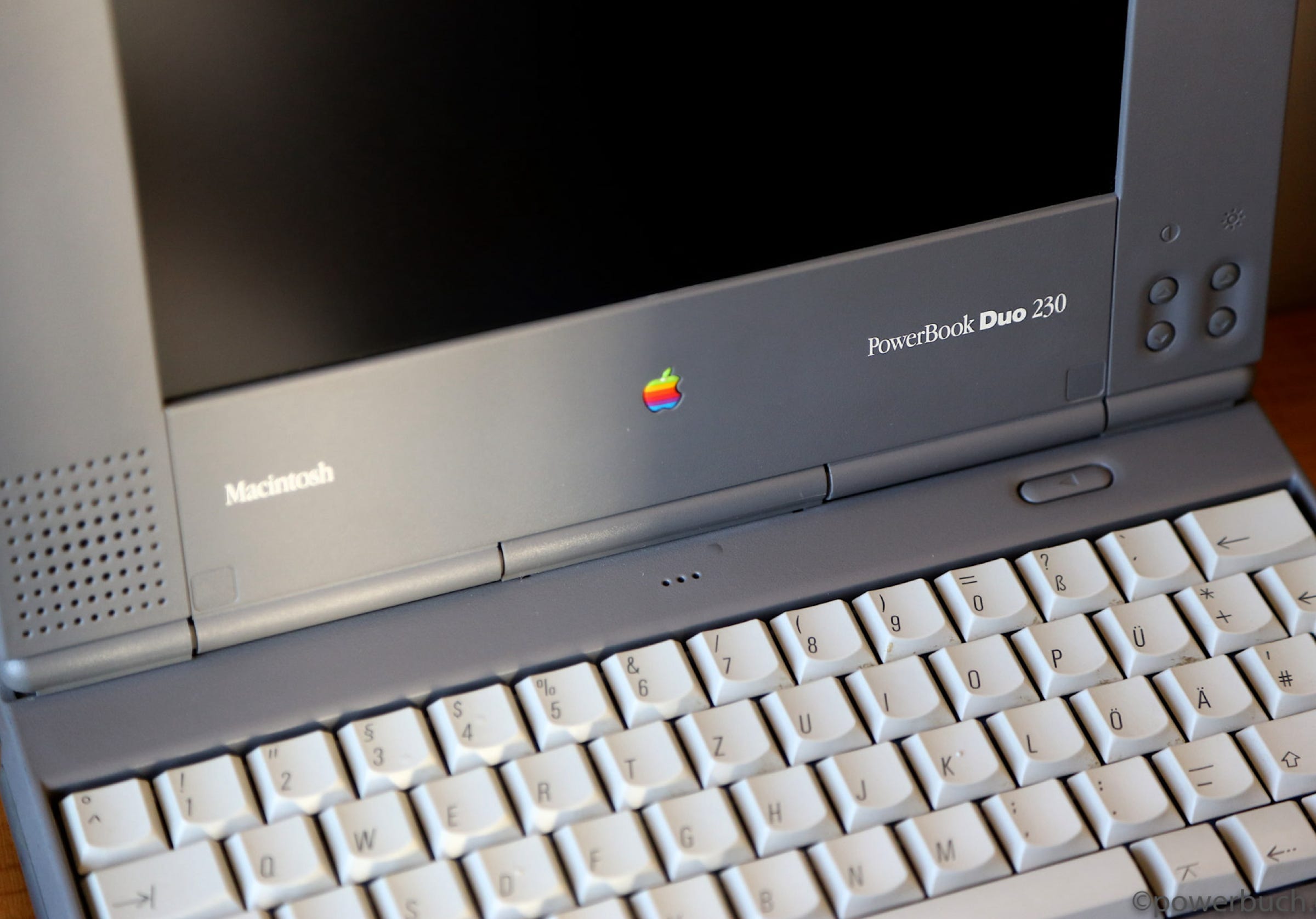

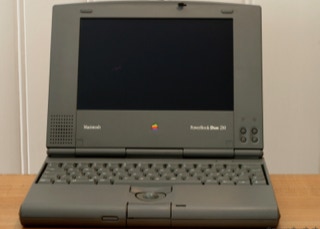

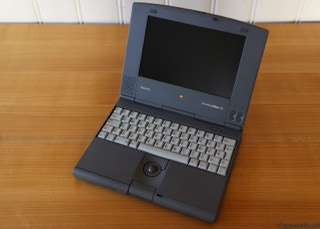

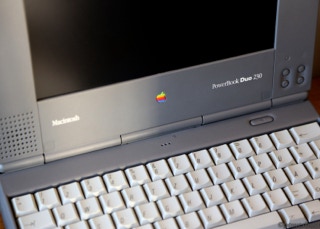

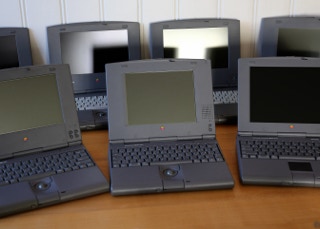

powerbook duo 230

The duo 230 was identical to the powerbook duo 210 with the exception of a faster 33 MHz 68030 processor.



The powerbook 180's specs are almost same for powerbook duo 230, except the duo 230 has a smaller display (9.1 inch). Its case design is identical to powerbook Duo 210, but it shipped with 33 MHz 68030. The powerbook Duo 230 had a 120MB SCSI hard disk drive. It was discontinued on July 27, 1994.
