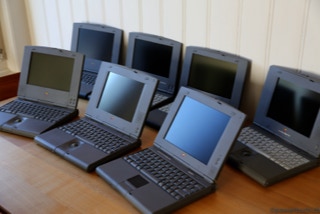

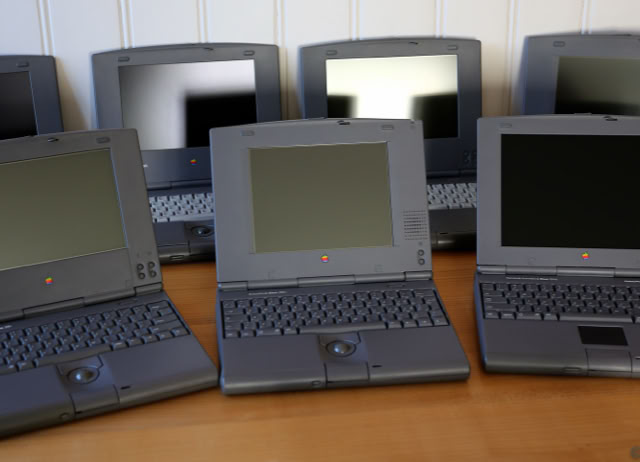

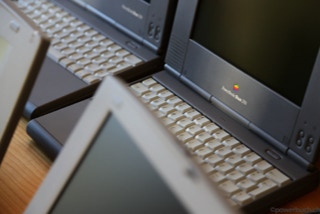

powerbook duo 250



Minimum OS: 7.1

Maximum OS: 7.6.1

Introduced: October 1993

Terminated: May 1994



Processor

CPU: Motorola MC68030

CPU Speed: 33 MHz

FPU: none

Bus Speed: 33 MHz

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

Level 1 Cache: 256 bytes data, 256 bytes instruction

ROM: 1 MB

RAM Type: unique

Min RAM Speed: 70 ns

Onboard RAM: 4 MB

RAM slots: 1

Maximum RAM: 24 MB

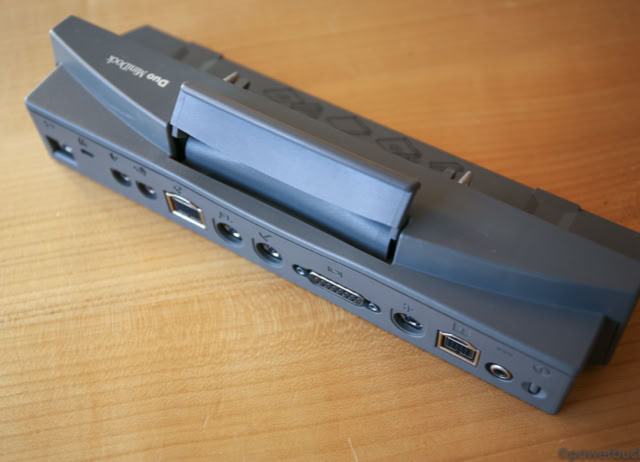

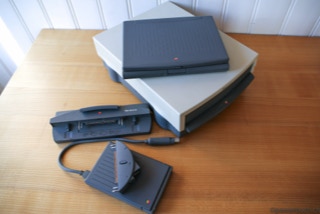

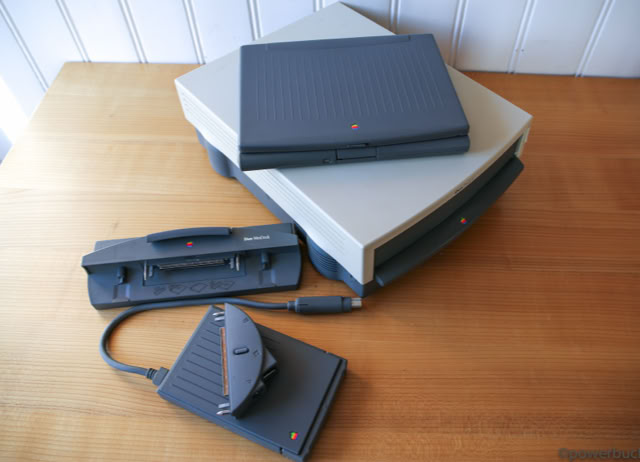

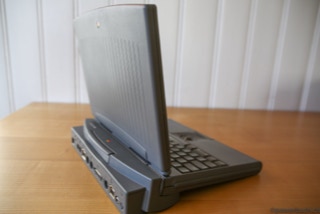

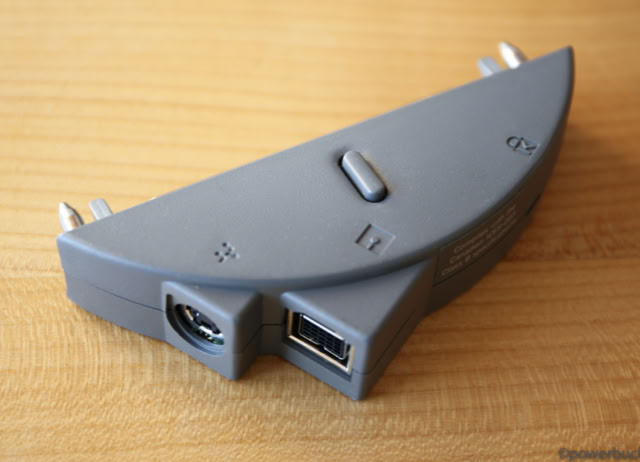

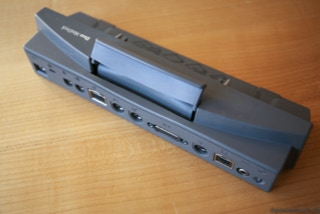

Expansion Slots: modem, Dock (152-pin PDS)



Video

Screen: 9" active matrix grayscale LCD

Max Resolution: 16 bit 640x400



Storage

Hard Drive: 200 MB



Input/Output

Serial: 1 Mini DIN-8

Speaker: mono 8 bit

Microphone: mono 8 bit

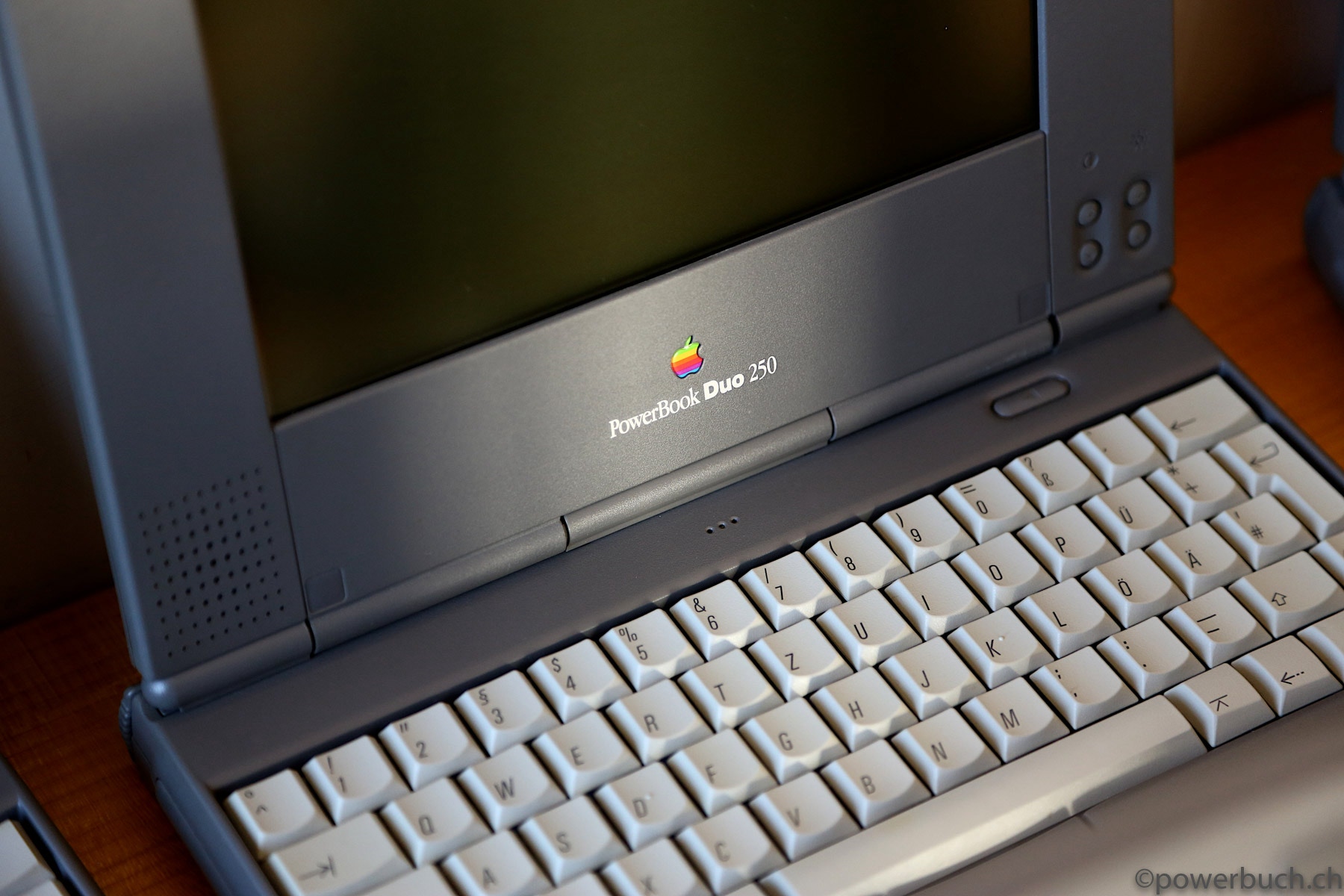

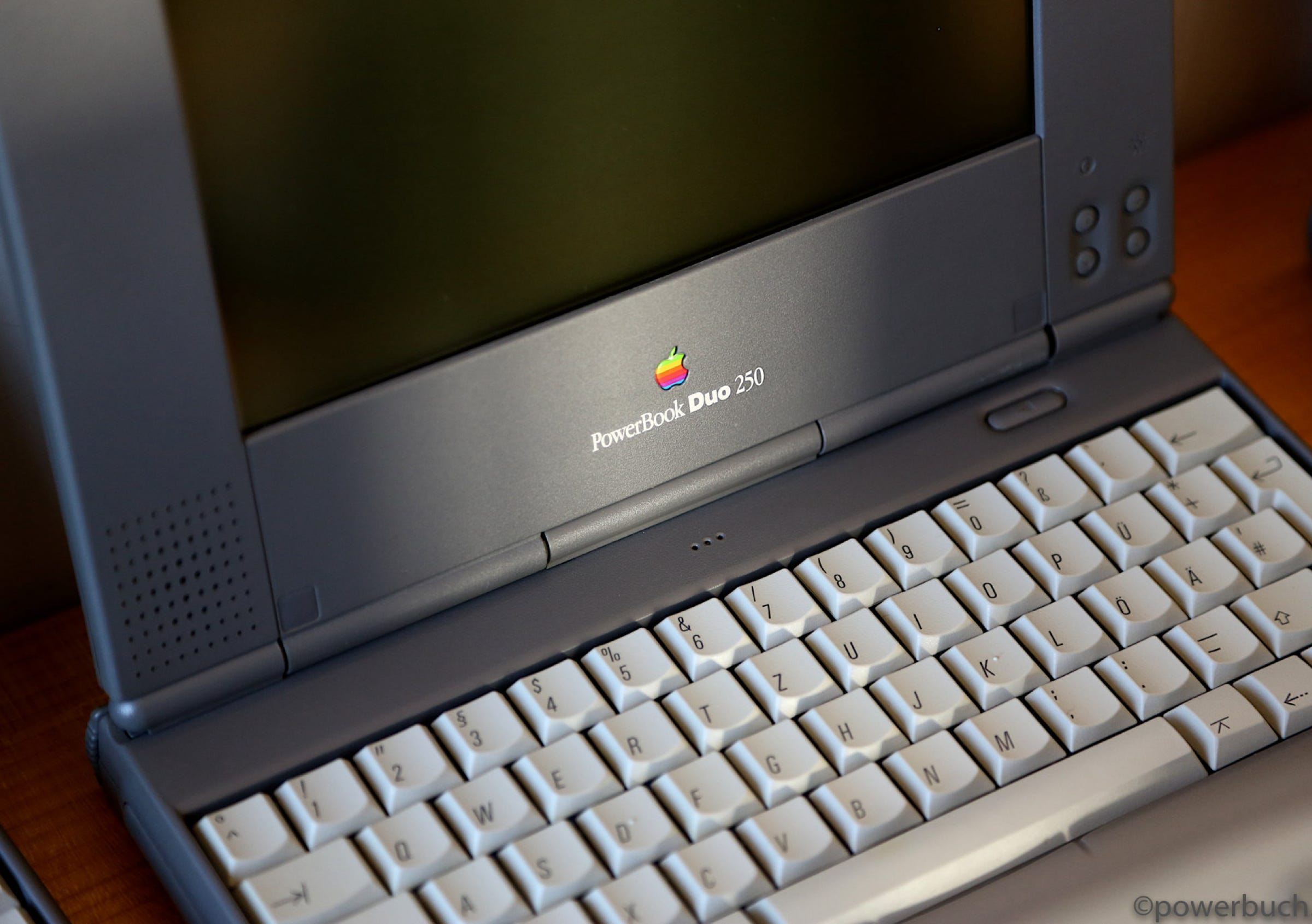

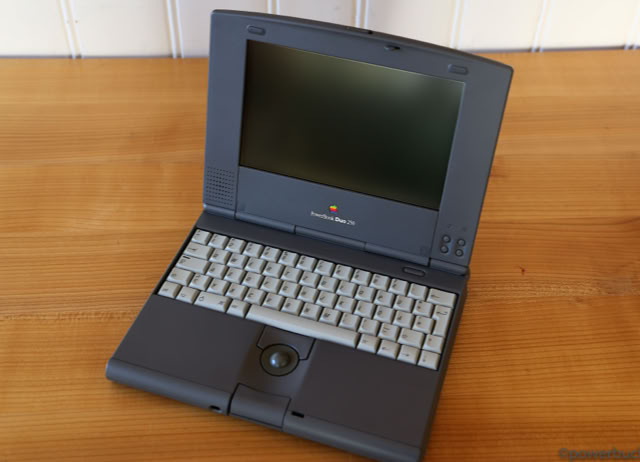

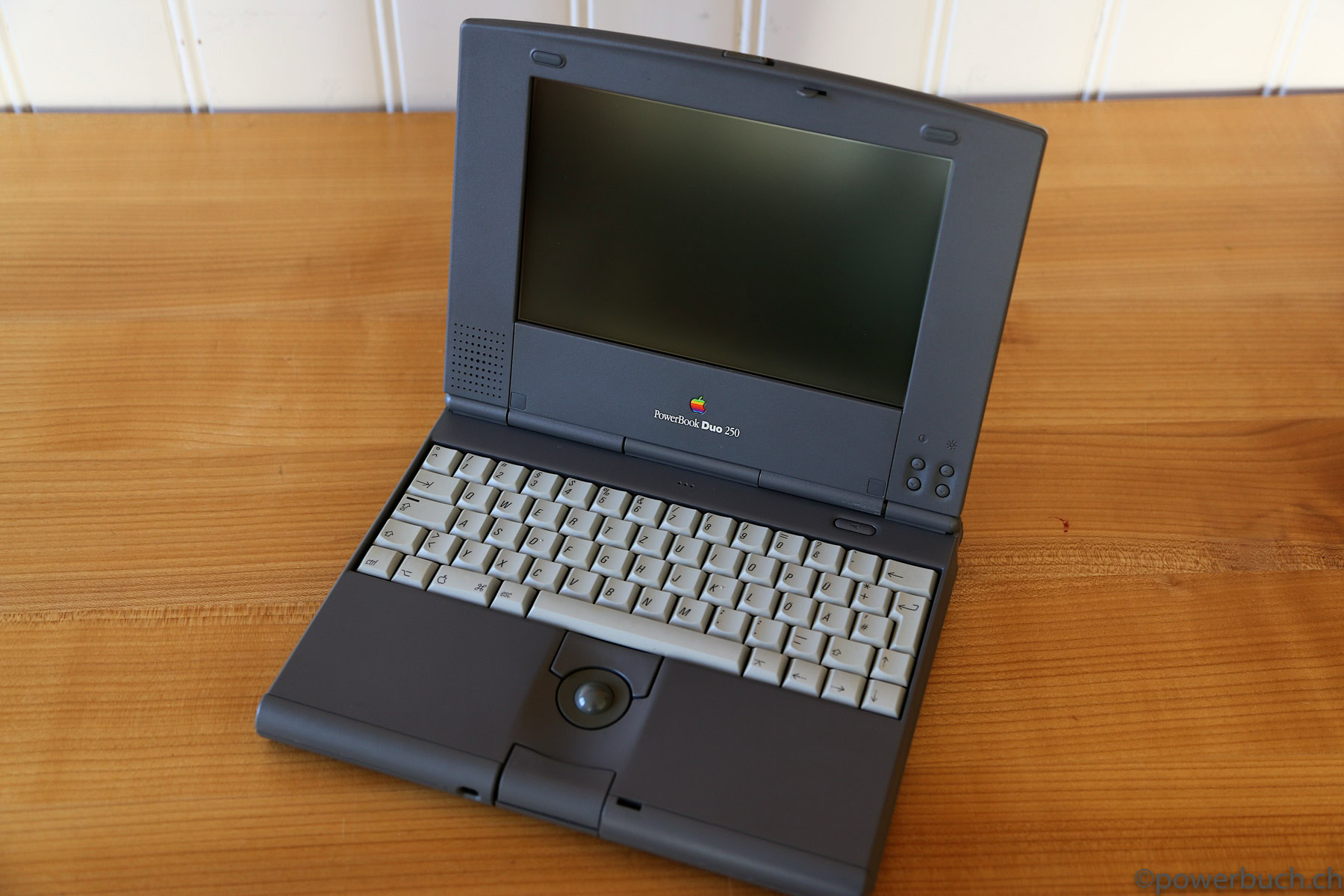

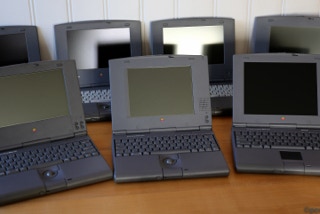

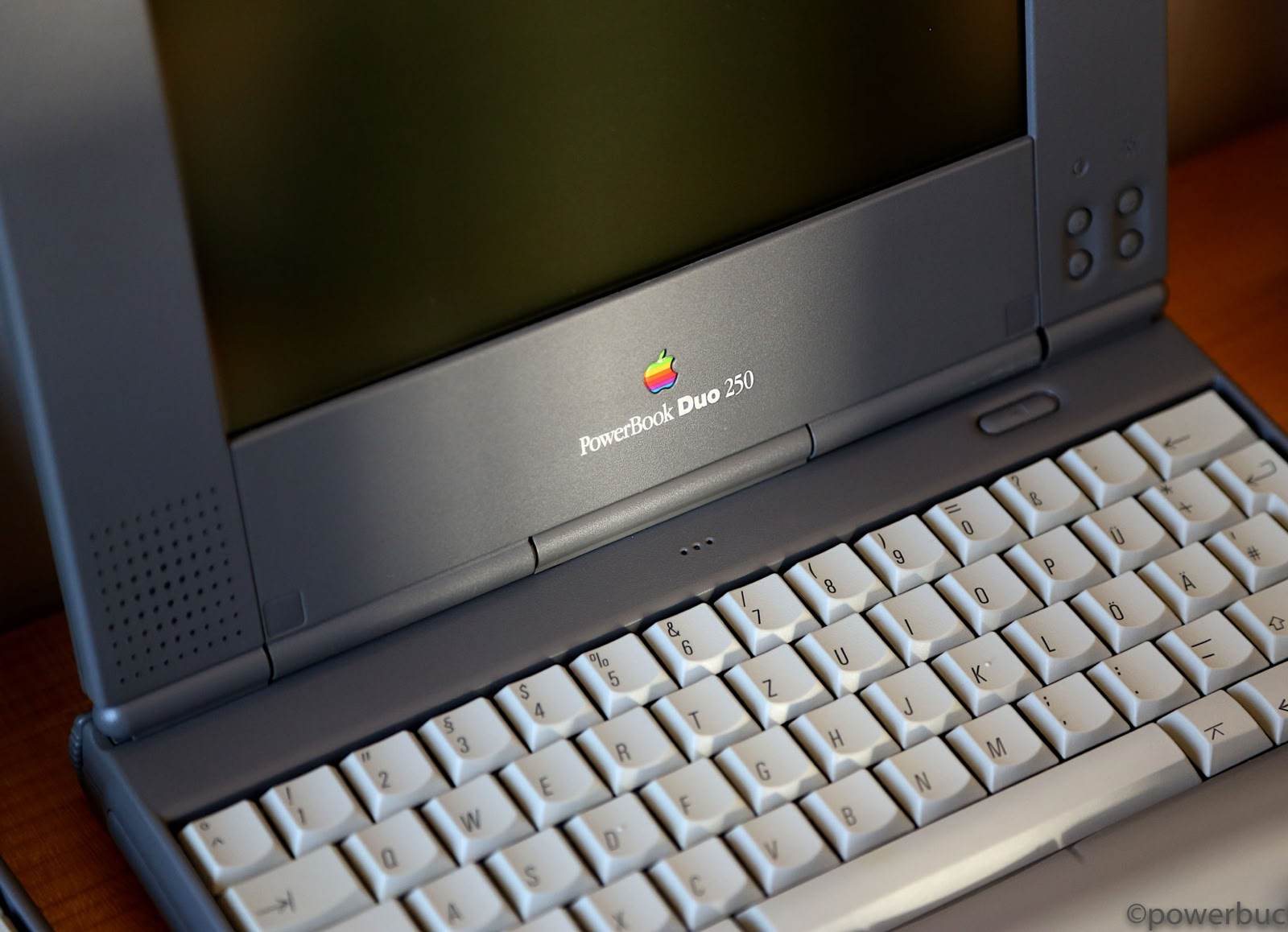

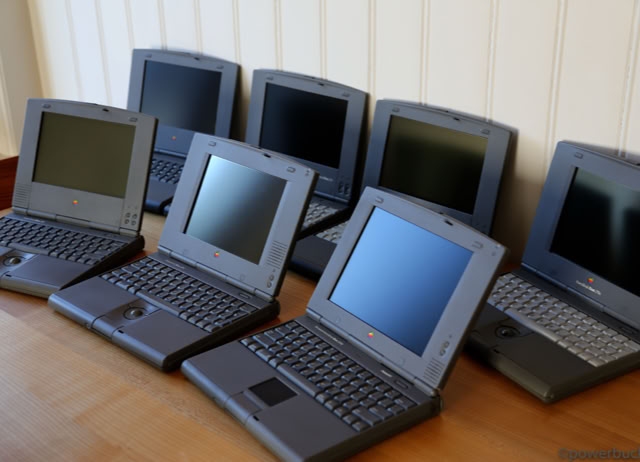

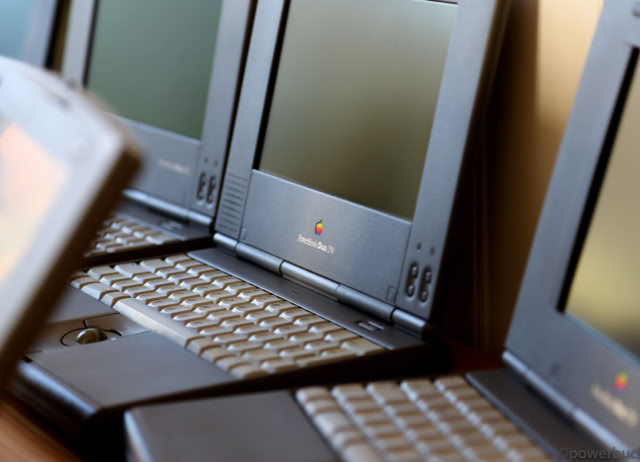

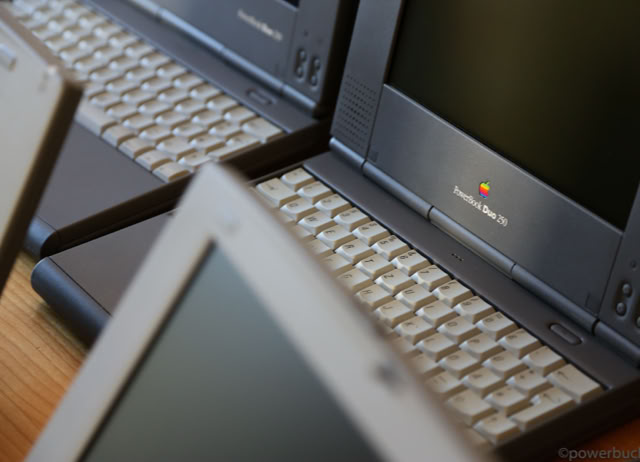

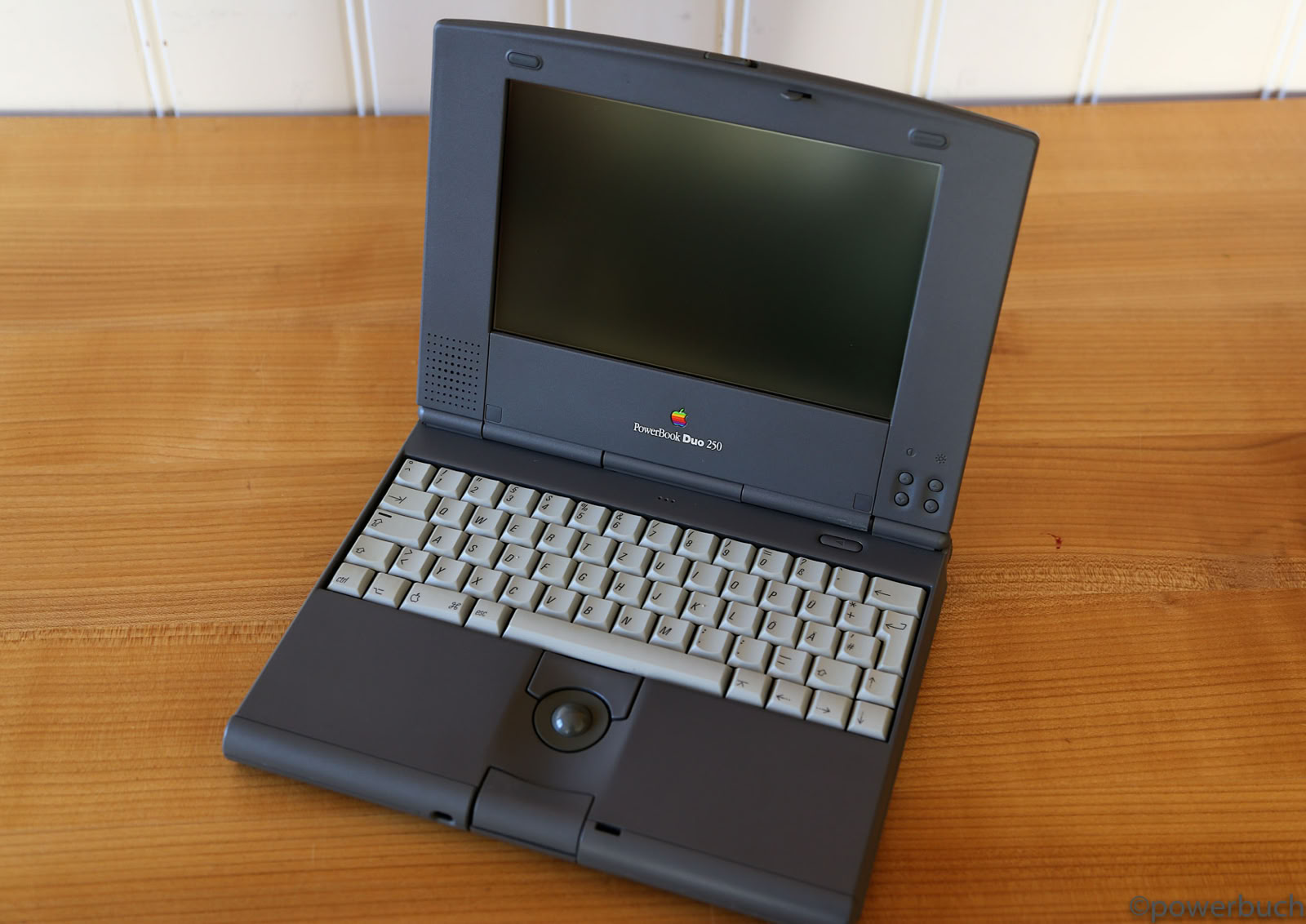

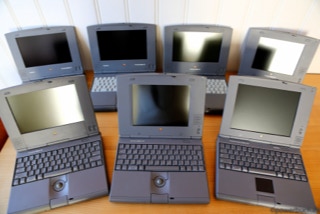

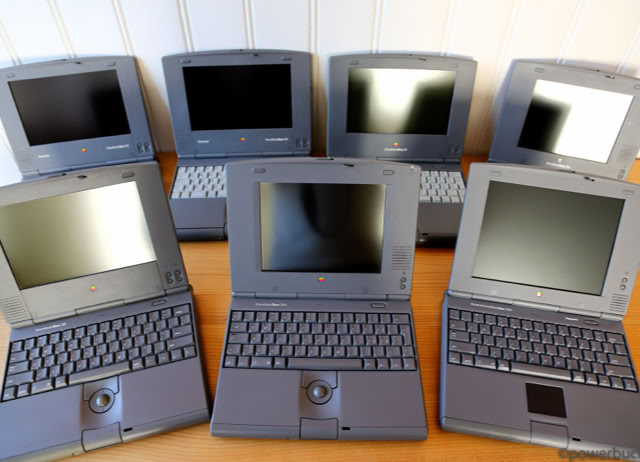

powerbook duo 250

The powerbook duo 250 was exactly the same as the powerbook duo 230 except it had a 4-bit active-matrix screen.
