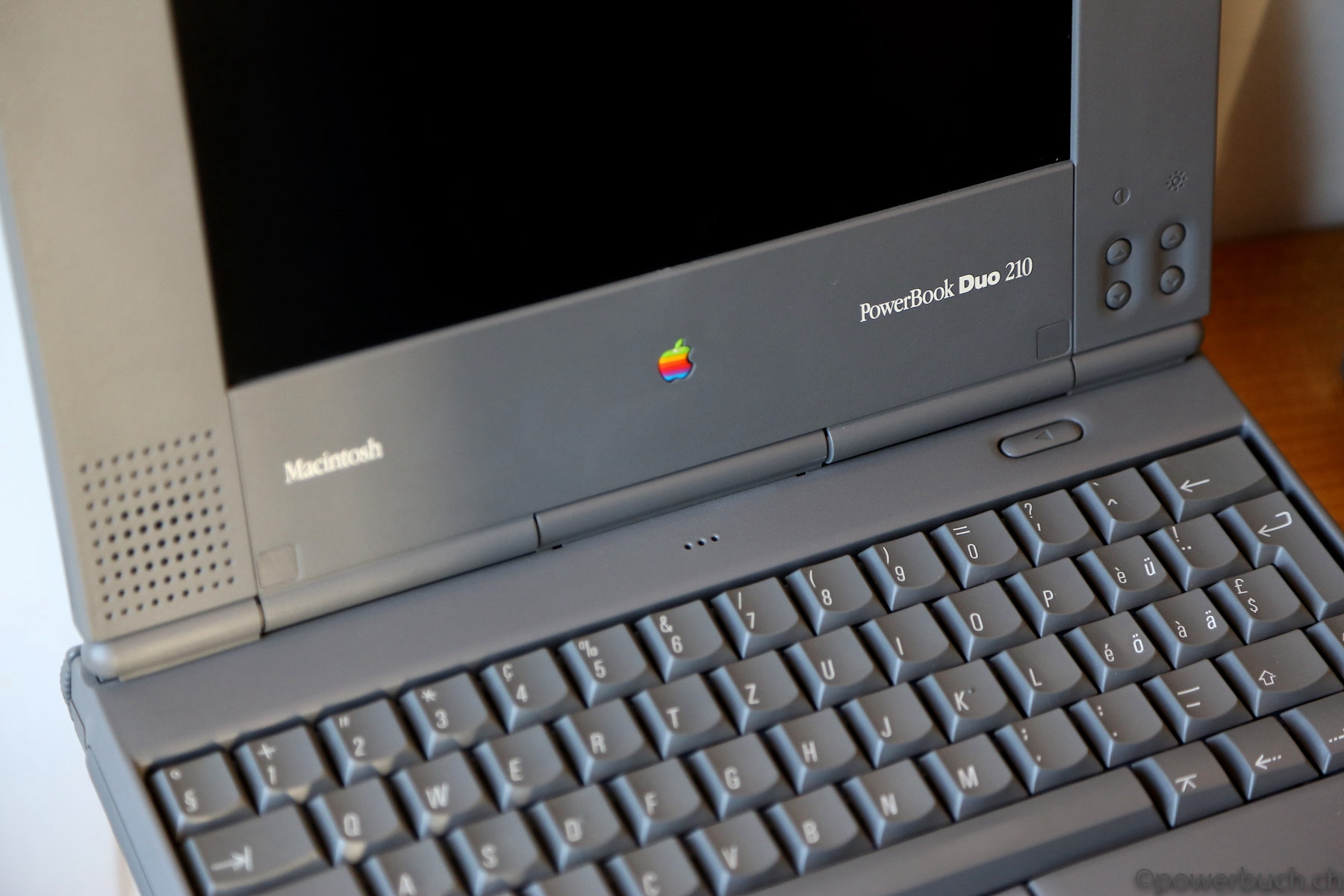

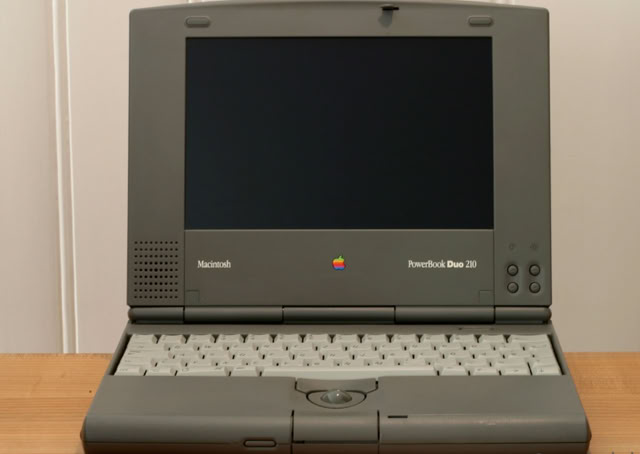

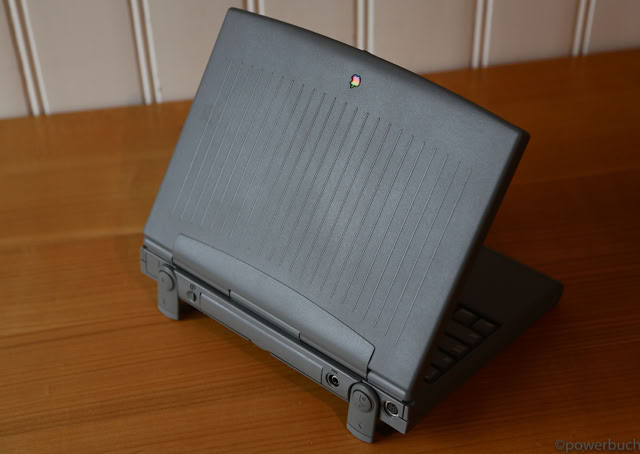

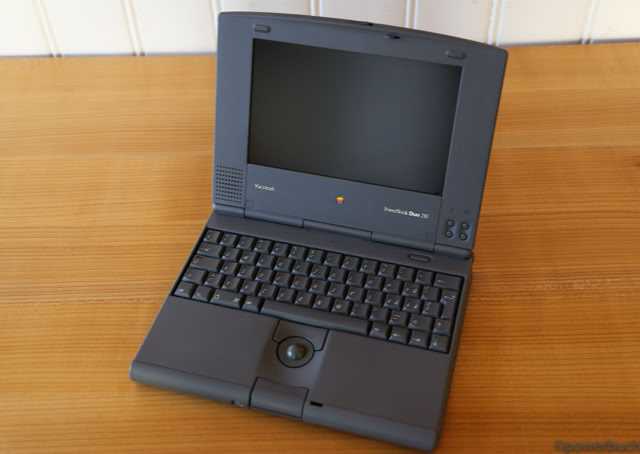

powerbook duo 210



Minimum OS: 7.1

Maximum OS: 7.6.1

Introduced: October 1992

Terminated: October 1993



Processor

CPU: Motorola MC68030

CPU Speed: 25 MHz

FPU: none

Bus Speed: 25 MHz

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

Level 1 Cache: 256 bytes data, 256 bytes instruction

ROM: 1 MB

RAM Type: unique

Min RAM Speed: 70 ns

Onboard RAM: 4 MB

RAM slots: 1

Maximum RAM: 24 MB

Expansion Slots: modem, Dock (152-pin PDS)



Video

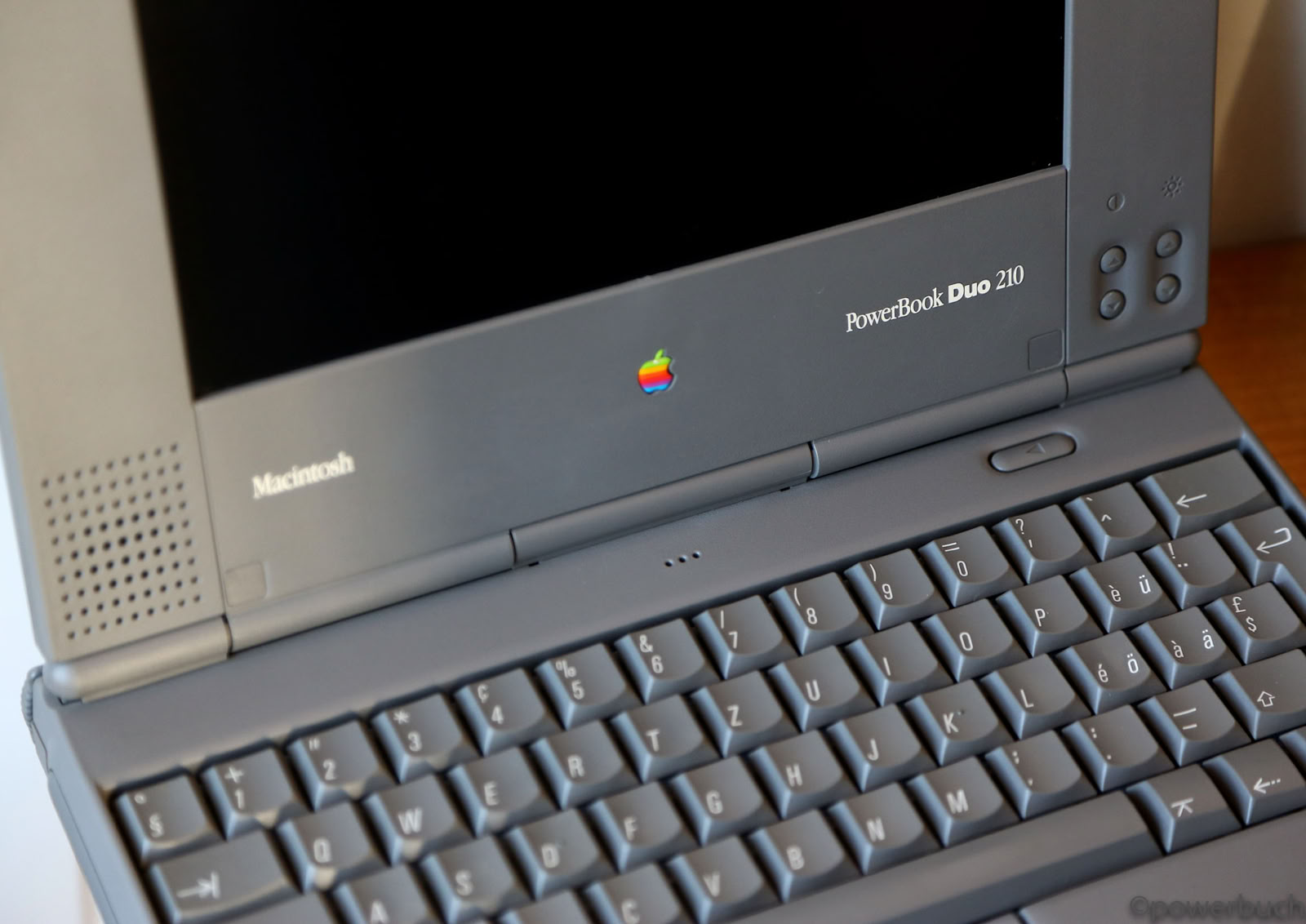

Screen: 9" supertwist grayscale LCD

Max Resolution: 4-bit 640x400



Storage

Hard Drive: 80 MB



Input/Output

Serial: 1 Mini DIN-8

Speaker: mono 8 bit

Microphone: mono 8 bit

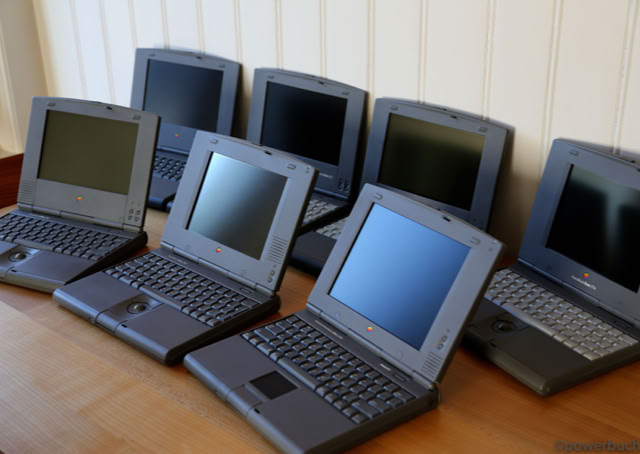

powerbook duo 210

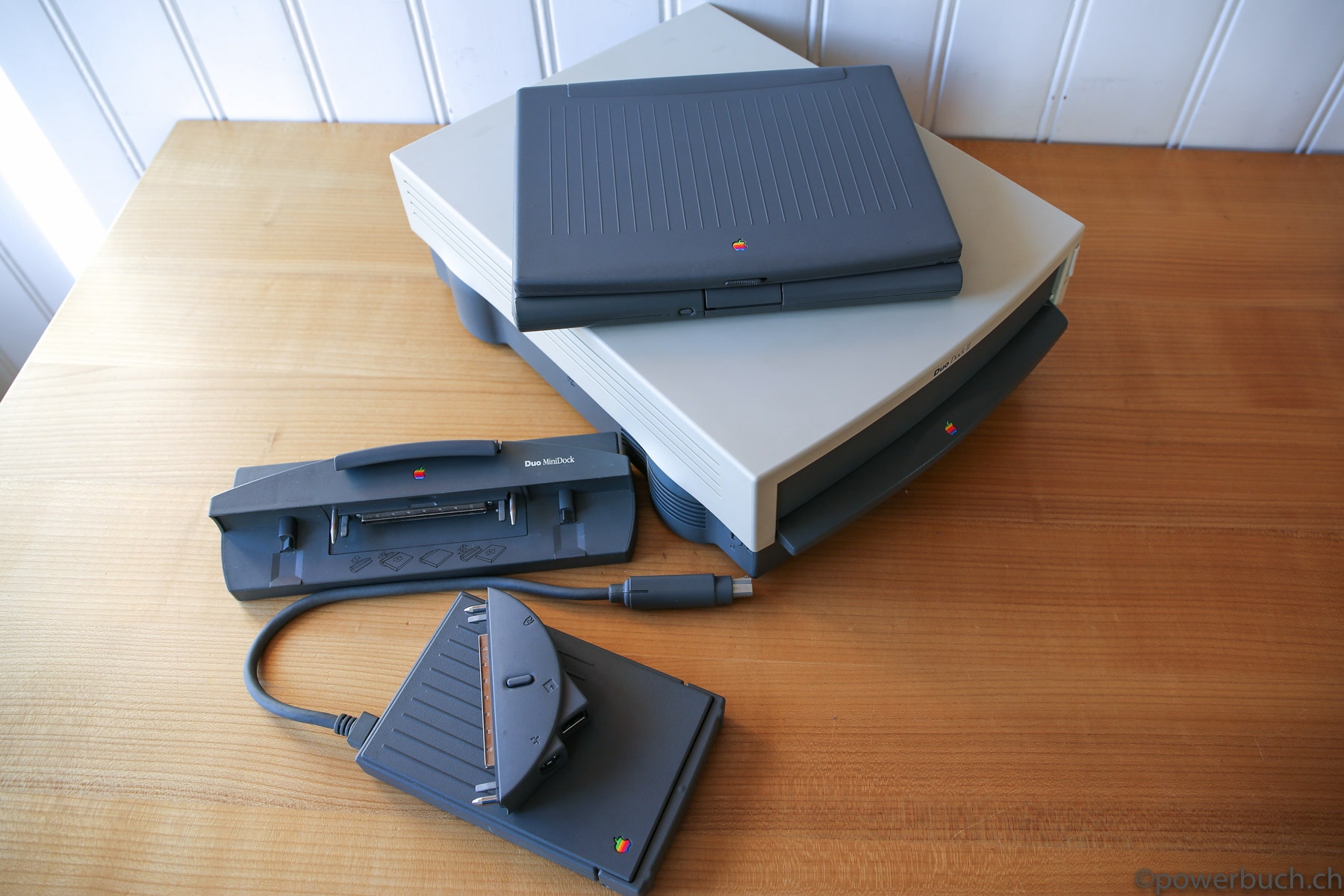

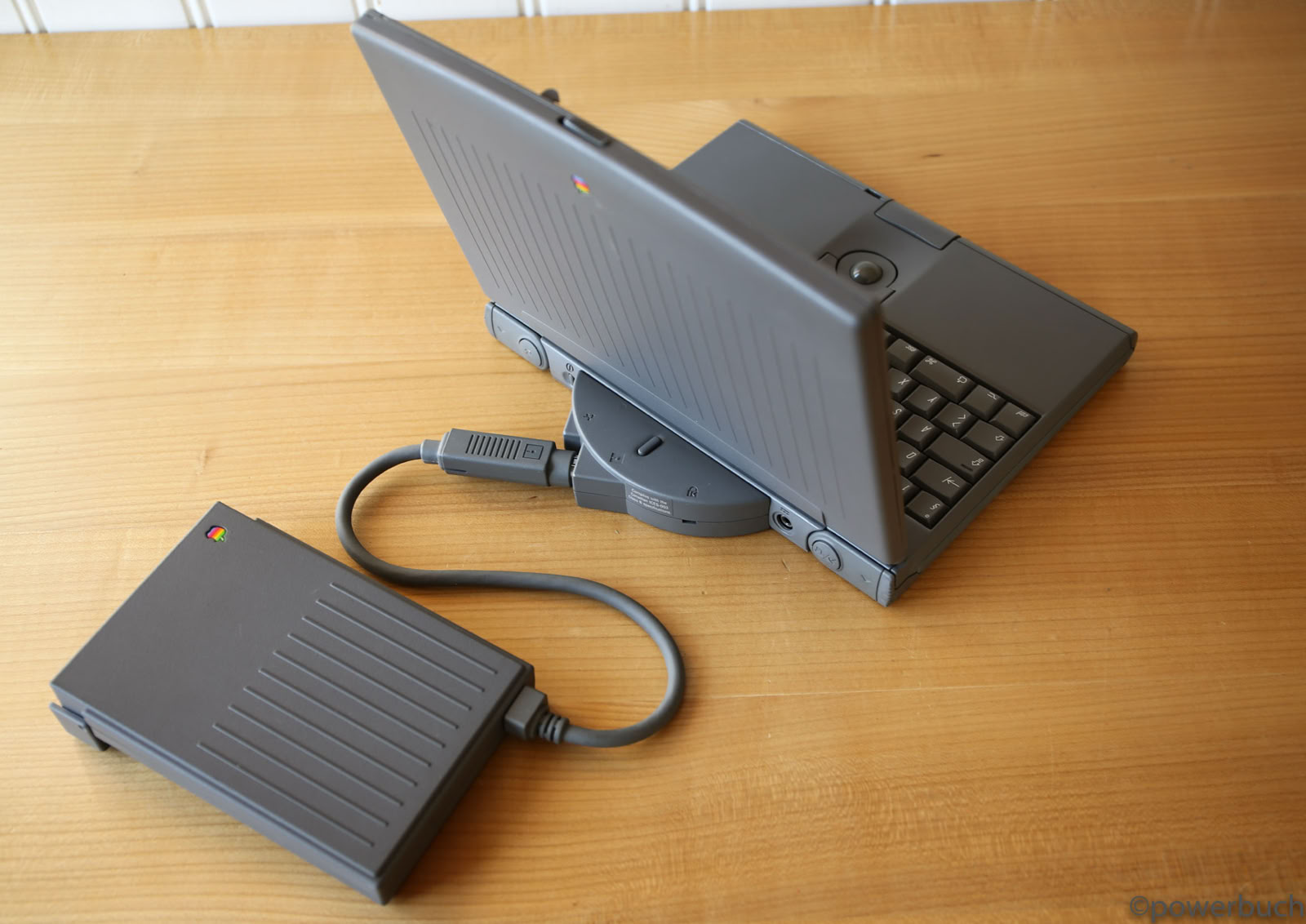

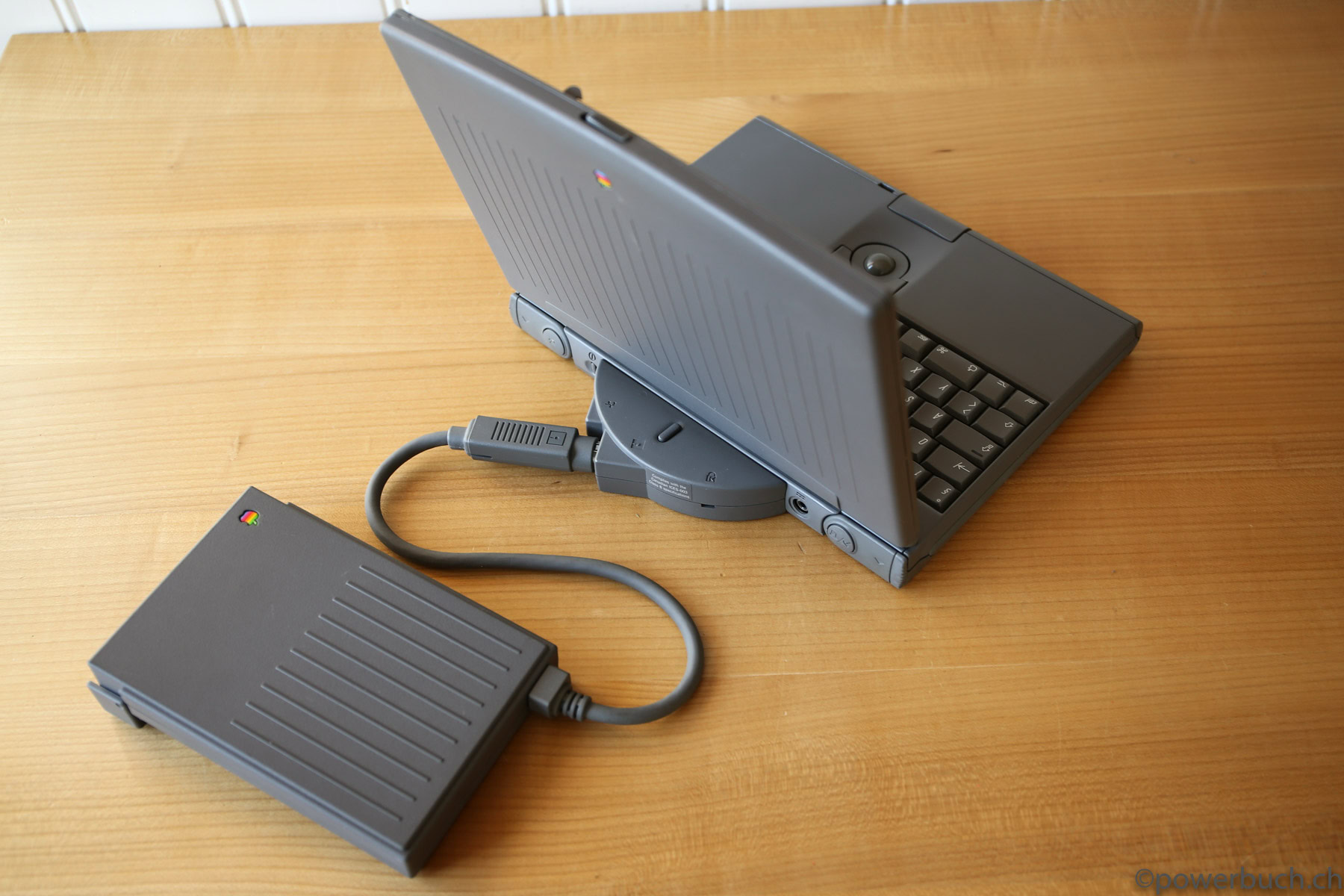

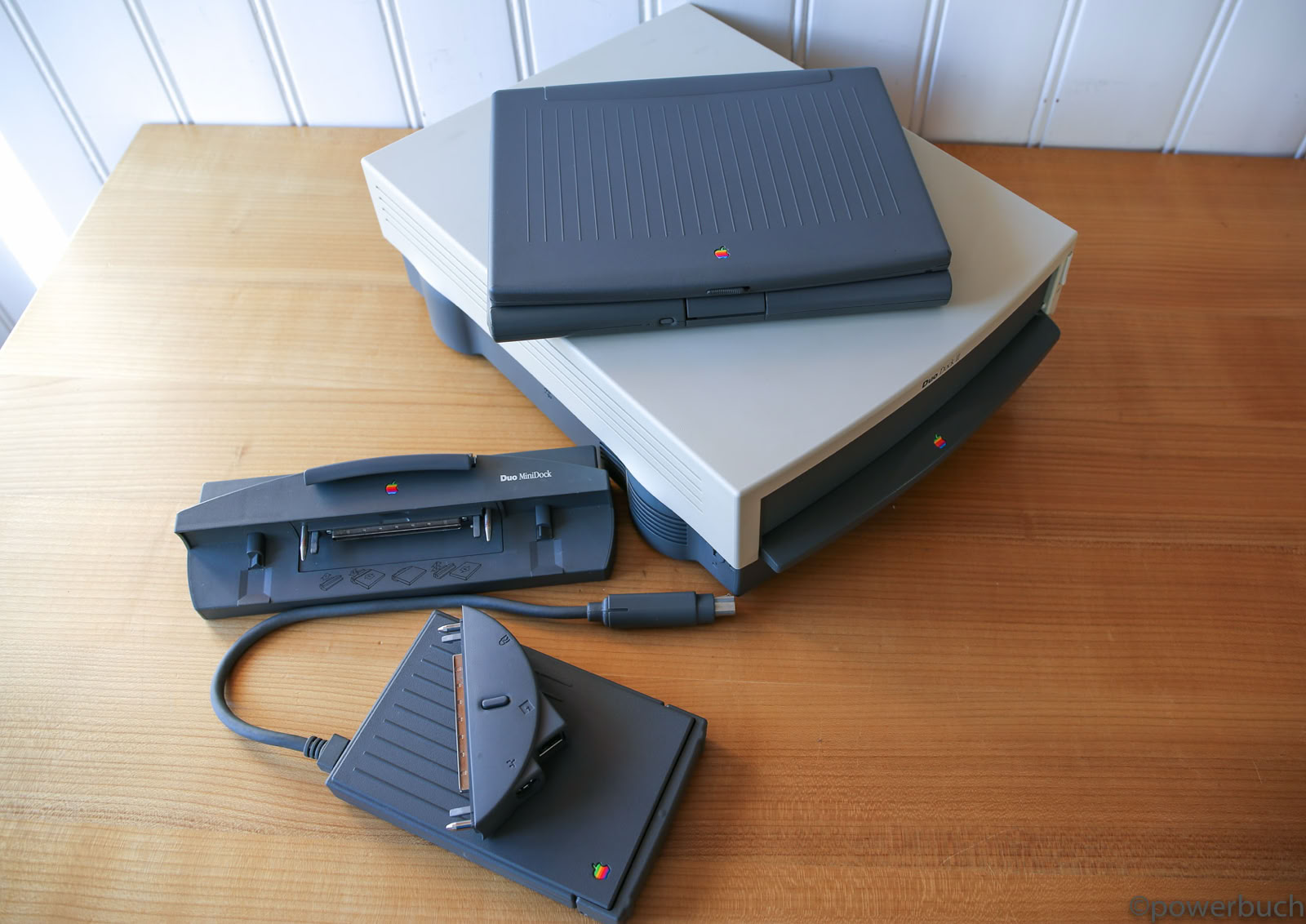

The first of a new breed, the idea behind the duo 210 was to have a fully functional desktop computer (by way of the duodock) that also served as an excellent portable machine. The 210 ran on a 25 MHz 68030 processor, had a 4-bit passive screen, 4-32 MB of memory, and an internal hard drive. Its most innovative feature was the 152 pin PDS that allowed it to dock with a docking station that might contain more RAM, a larger hard drive, or more VRAM for a color monitor.
