powerbook duo 2300c



Minimum OS: 7.5.2

Maximum OS: 9.1

Introduced: August 1995

Terminated: February 1997



Processor

CPU: PowerPC 603e

CPU Speed: 100 MHz

FPU: integrated

Bus Speed: 33 MHz

Register Width: 32-bit

Data Bus Width: 64-bit

Address Bus Width: 32-bit

Level 1 Cache: 16 kB data, 16 kB instruction

ROM: 4 MB

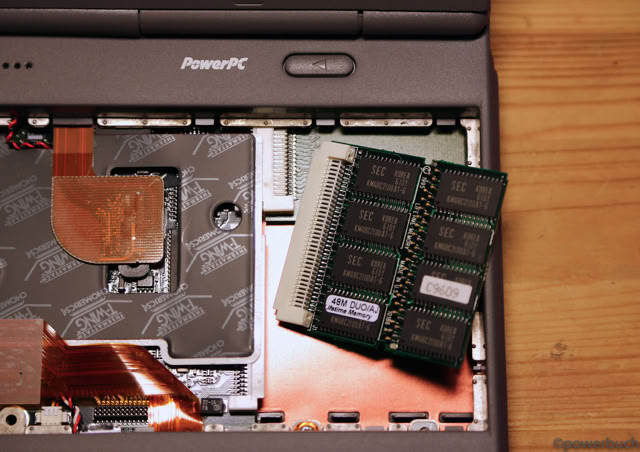

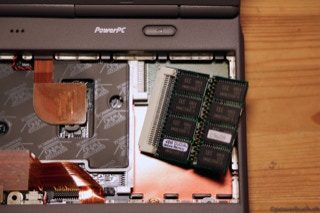

RAM Type: unique

Mini RAM Speed: 70 ns

Onboard RAM: 8 MB

RAM slots: 1

Maximum RAM: 56 MB

Expansion Slots: modem, Dock (152-pin PDS)



Video

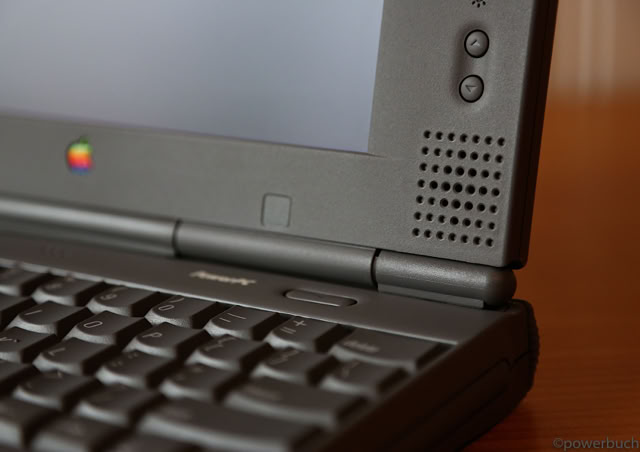

Screen: active matrix 9.5"

Max Resolution: 16-bit 640x400, 8-bit 640x480



Storage

Hard Drive: 750 MB/1.1 GB



Input/Output

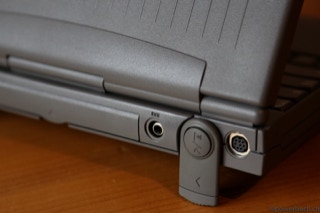

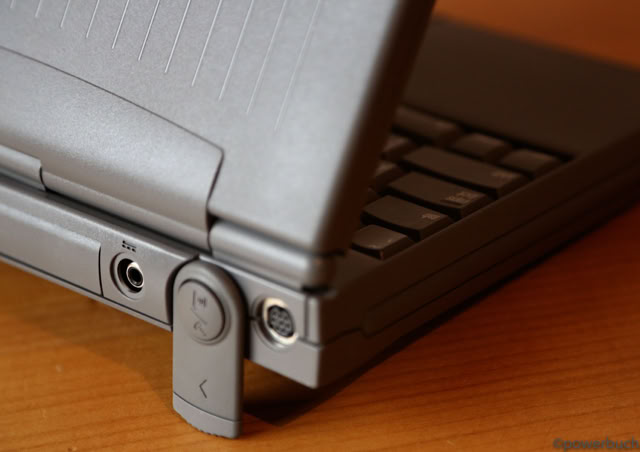

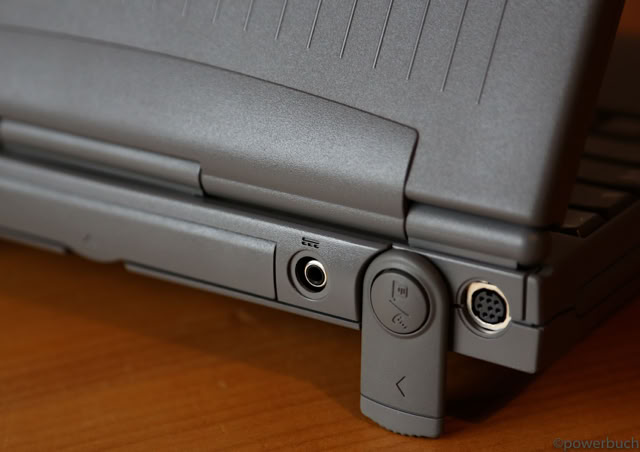

Serial: 1 Mini DIN-8

Speaker: mono

Microphone: mono

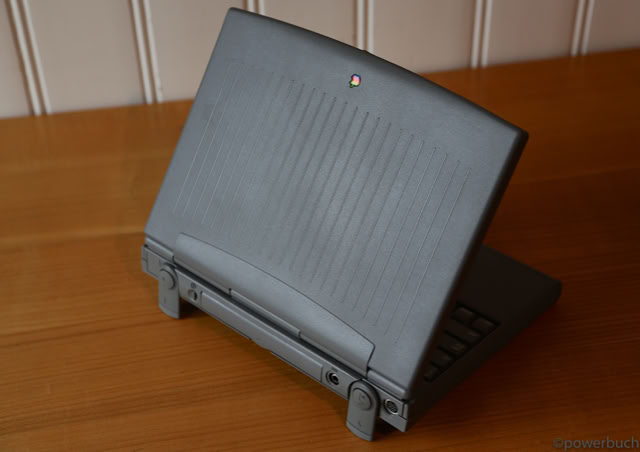

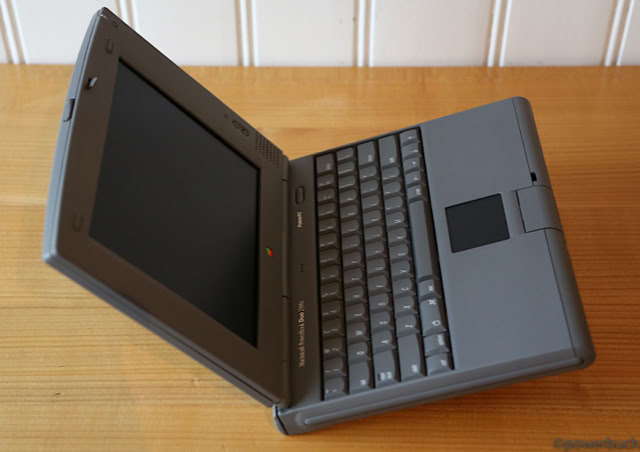

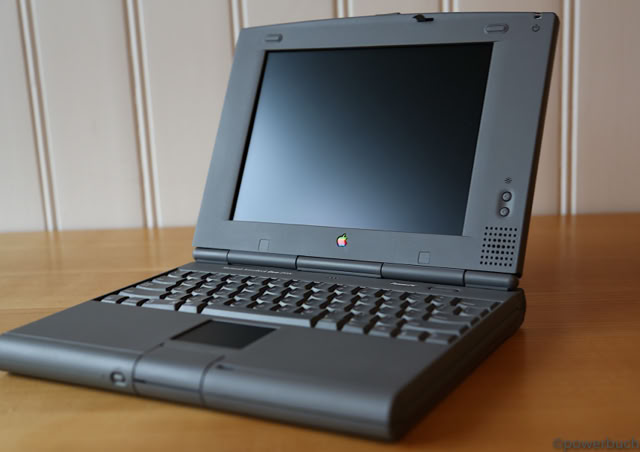

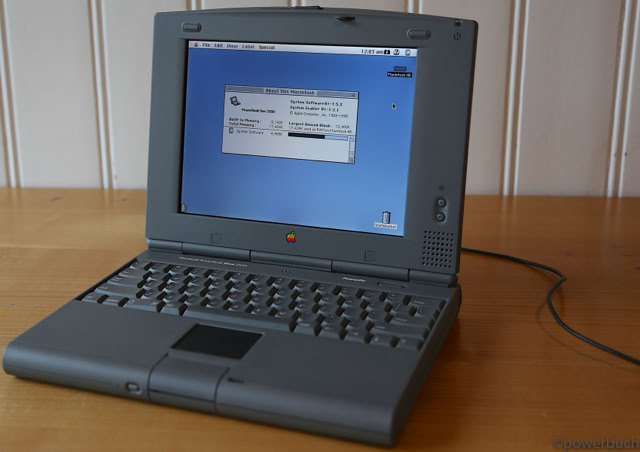

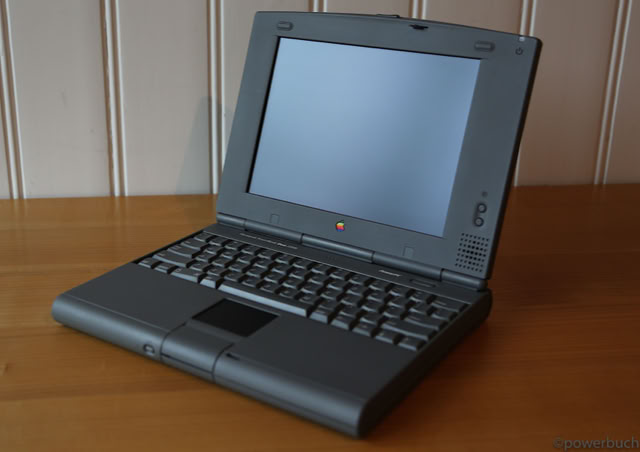

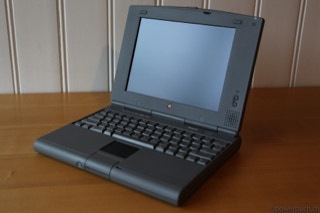

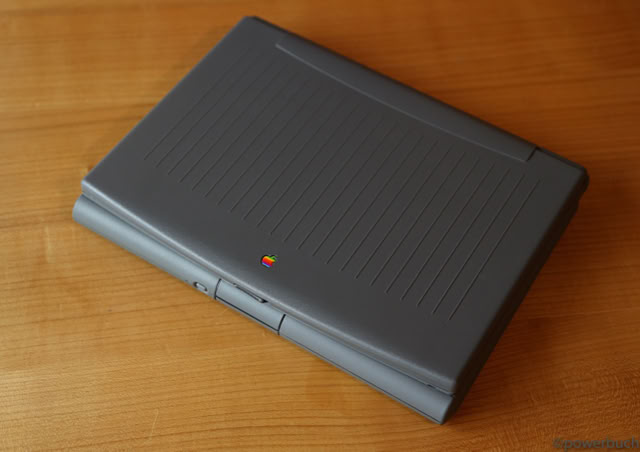

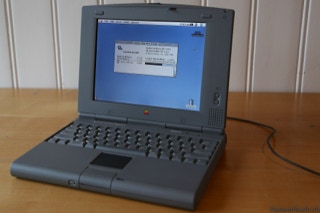

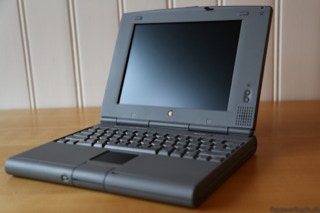

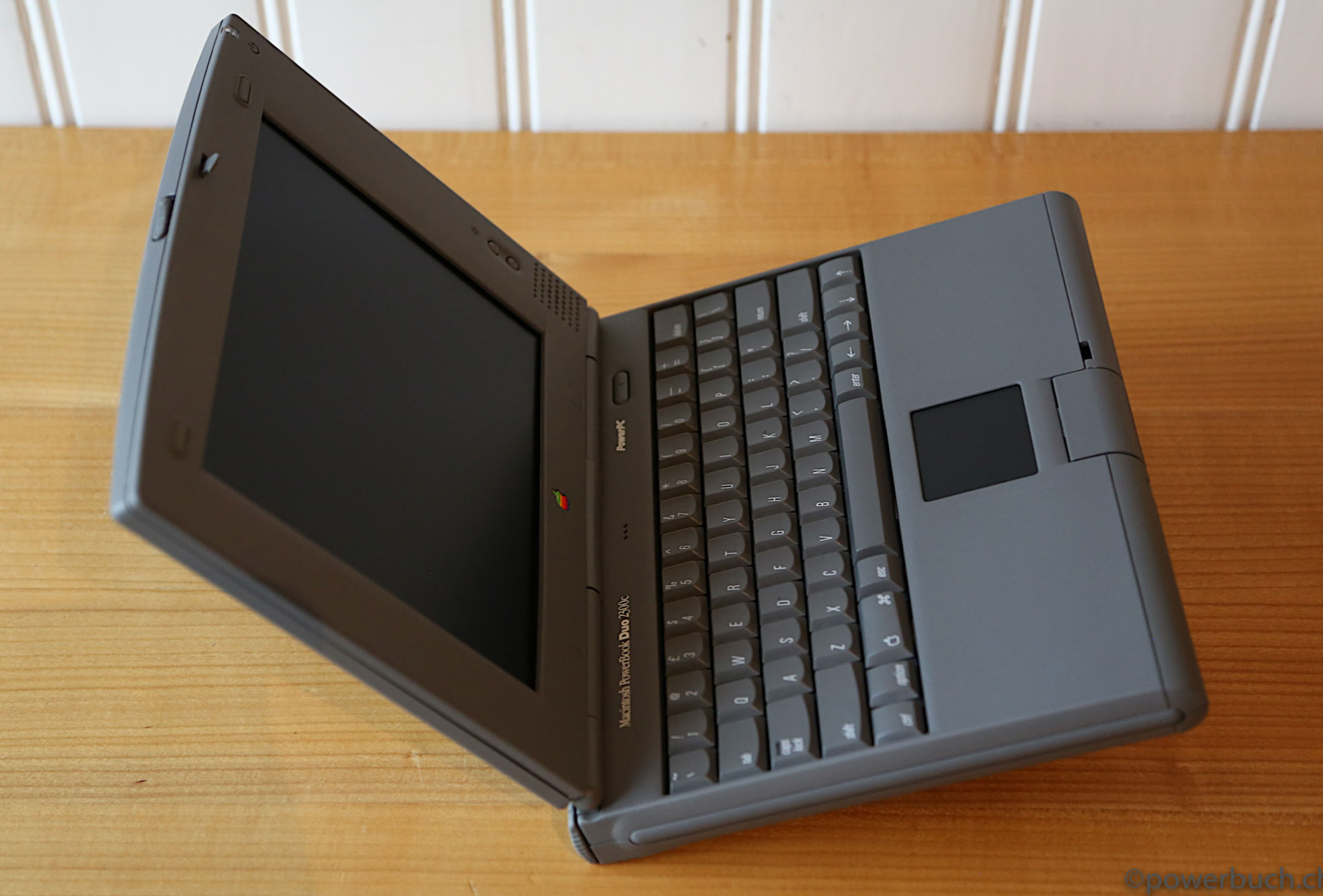

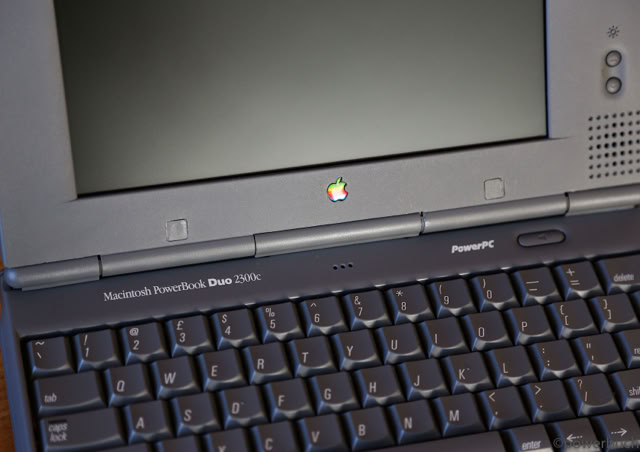

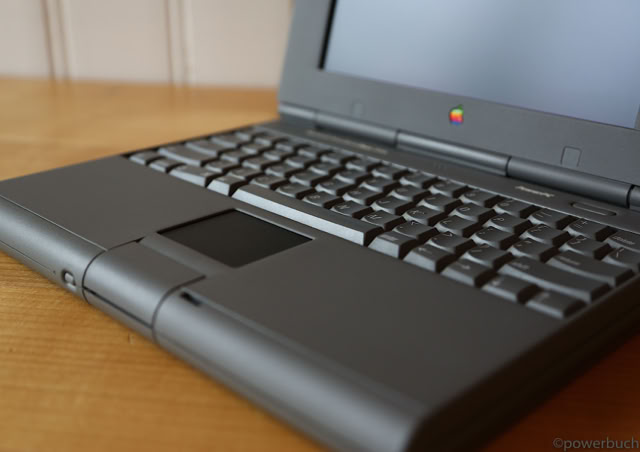

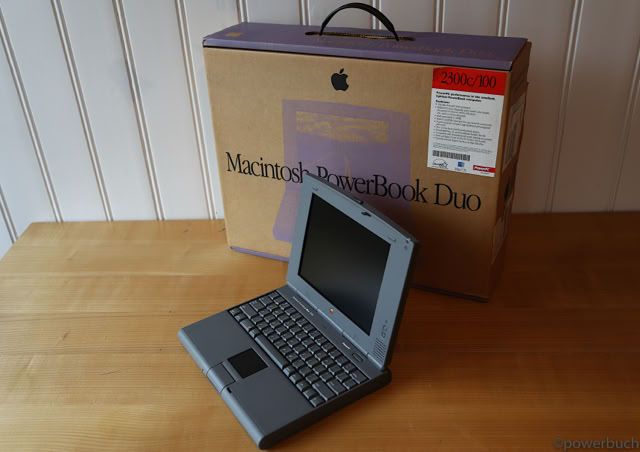

powerbook duo 2300c

The first powerpc duo, the 2300c was announced in August 1995. Powered by a 100 MHz 603e processor, the 2300c sold for $3,700 for 8/750, and $4,700 for 20/1.1 GB and an internal 14.4 Kbps internal modem.



It was discontinued in early 1997, leaving a distinct lack of mac sub-notebook machines which eventually would be filled by the powerbook 2400c.
