The Greatest Vintage Apple PowerBook and MacBook Computer Museum

powerbook G4 aluminum



Minimum OS: 10.2.8

Maximum OS: 10.5.8

Introduced: Sep 2003

Terminated: Apr 2004



Processor

CPU: PowerPC 7447 "G4"

CPU Speed: 1.0/1.25 GHz

FPU: integrated

Bus Speed: 166 MHz

Register Width: 32-bit

Data Bus Width: 64-bit

Address Bus Width: 32-bit

Level 1 Cache: 32 kB data, 32 kB instruction

Level 2 Cache: 512 kB on-processor

ROM: 1 MB ROM + 3 MB toolbox ROM loaded into RAM

RAM Type: PC2700 DDR SO-DIMM

Min RAM Speed: 333 MHz

Onboard RAM: 0 MB

RAM slots: 2

Maximum RAM: 2 GB

Expansion Slots: 1 PC Card (Type I or II)



Video

Screen: 15" active matrix TFT

Monitor: 24 bit 1280x854

GPU: ATI Mobility Radeon 9600

VRAM: 64 MB

Video Out: DVI, S-Video



Storage

Hard Drive: 60/80 GB 4200 RPM

ATA Bus: ATA-100

Optical Drive: 24x/24x/10x/8x CD-RW/DVD-ROM or 24x/16x/4x/8x/2x/1x CD-RW/DVD-RW

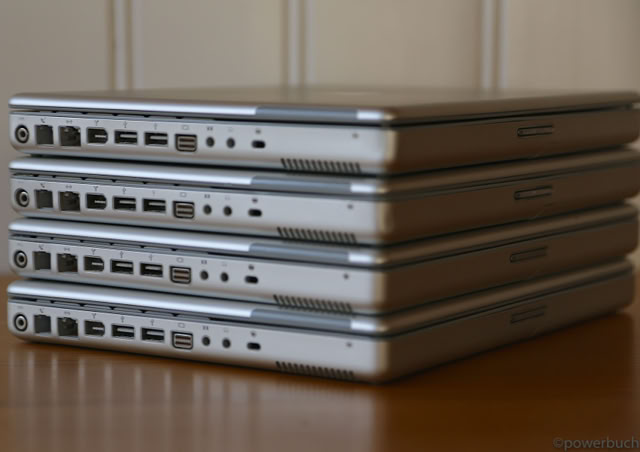

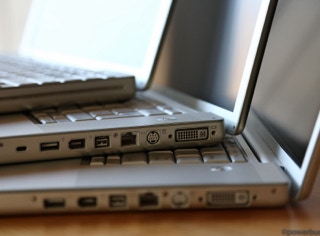

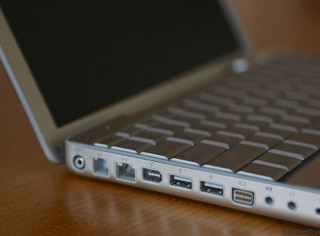

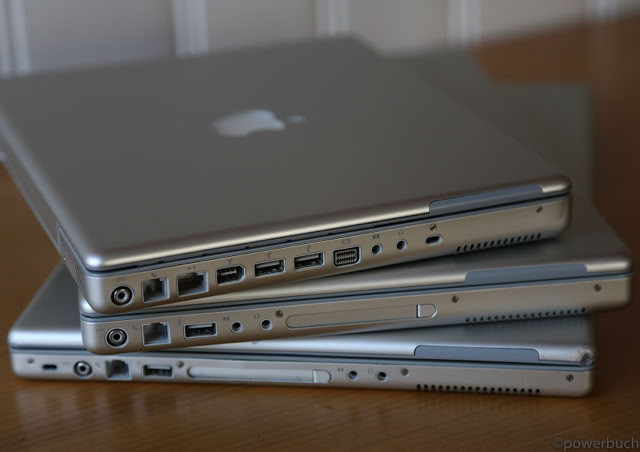

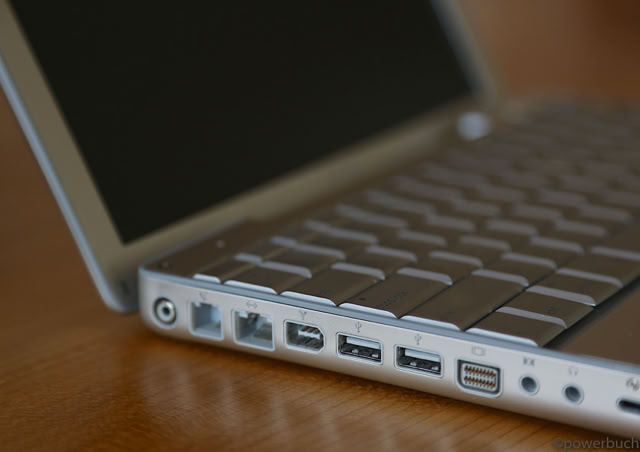

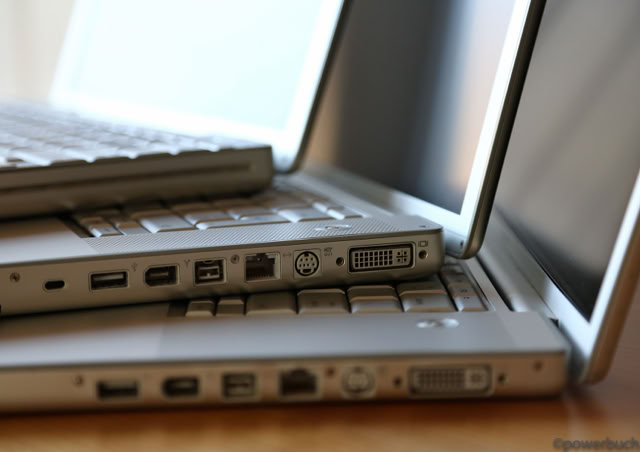

Input/Output

USB: 2 2.0

Firewire: 1

Firewire800: 1

Audio Out: 16 bit stereo mini

Audio In: 16 bit stereo mini

Speaker: stereo

Microphone: mono

powerbook G4 aluminium

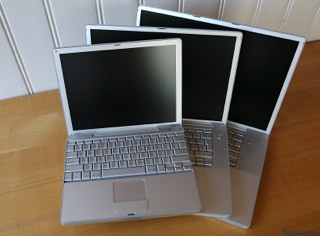

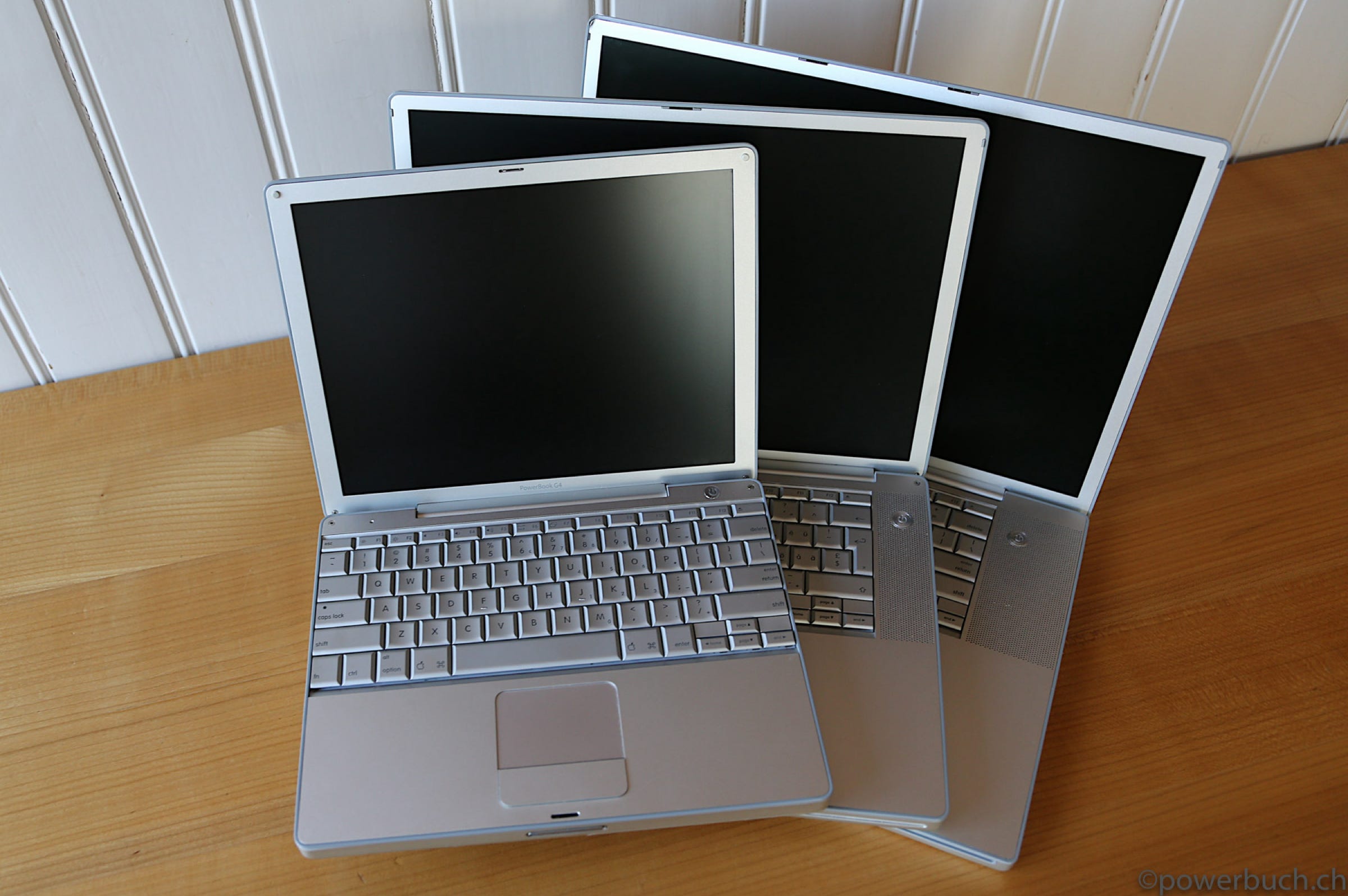

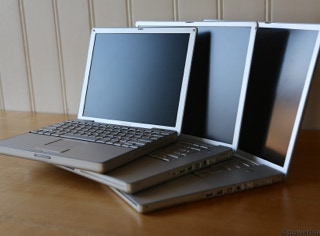

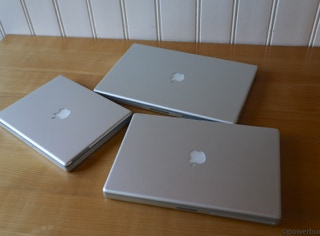

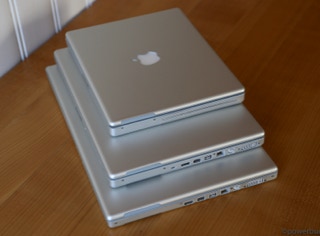

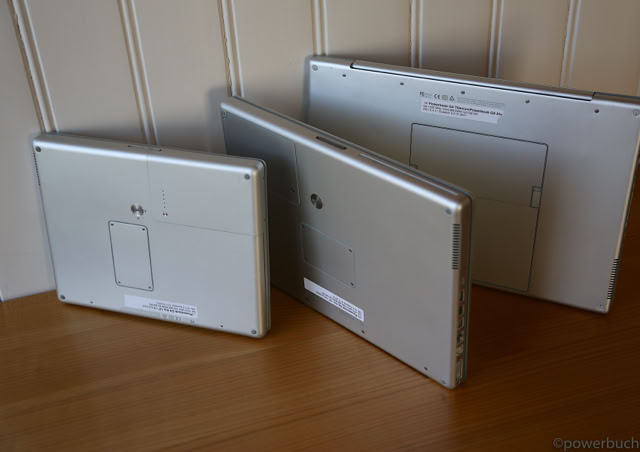

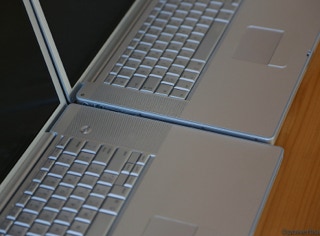

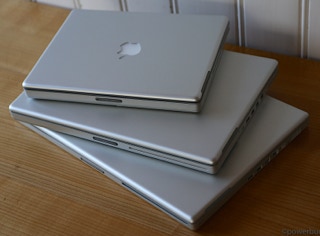

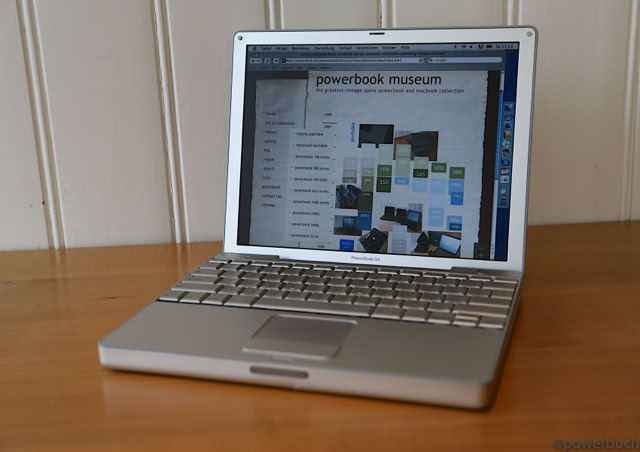

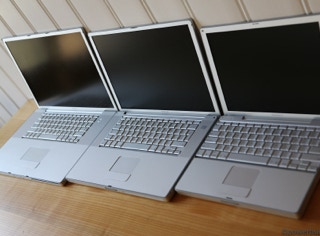

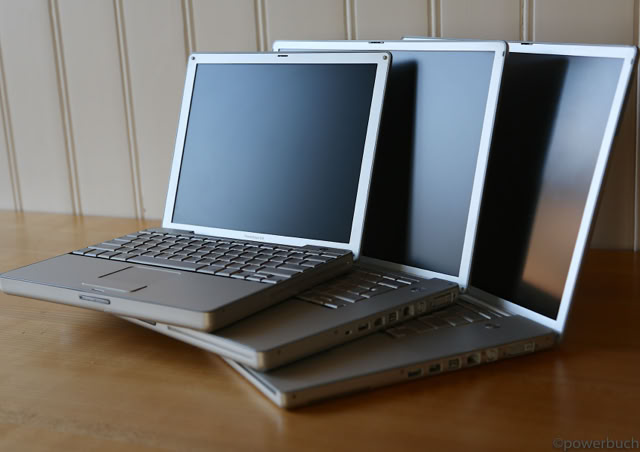

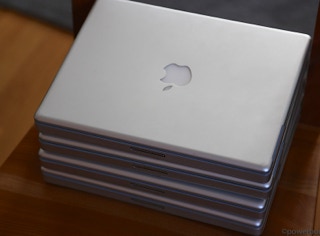

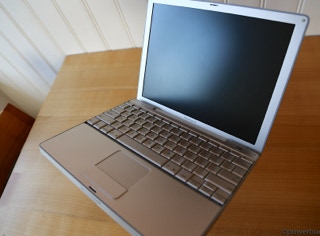

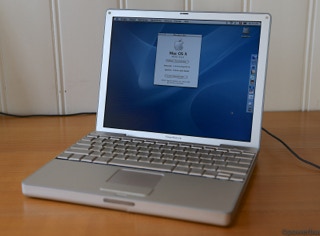

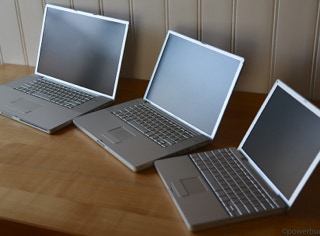

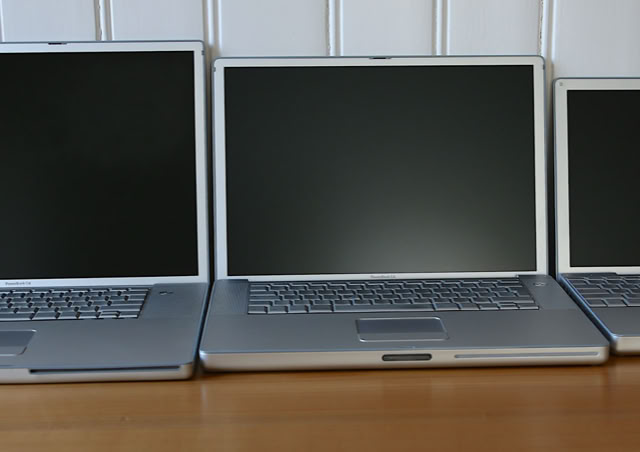

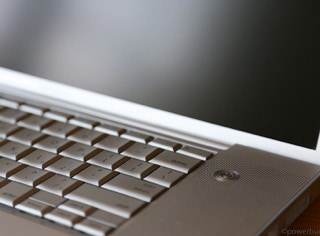

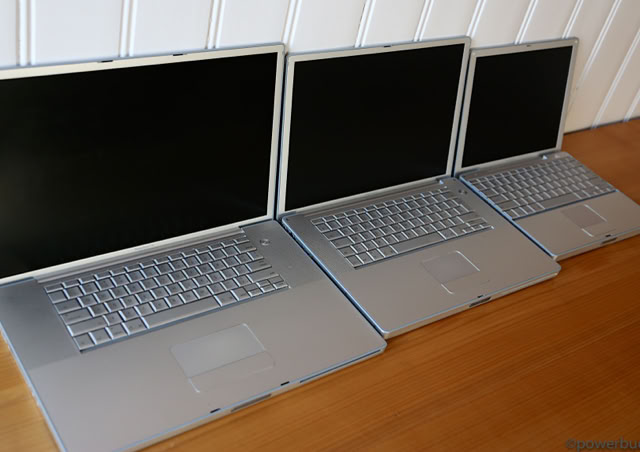

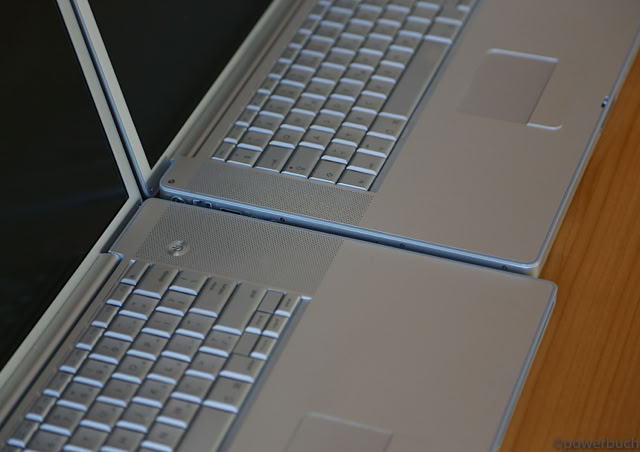

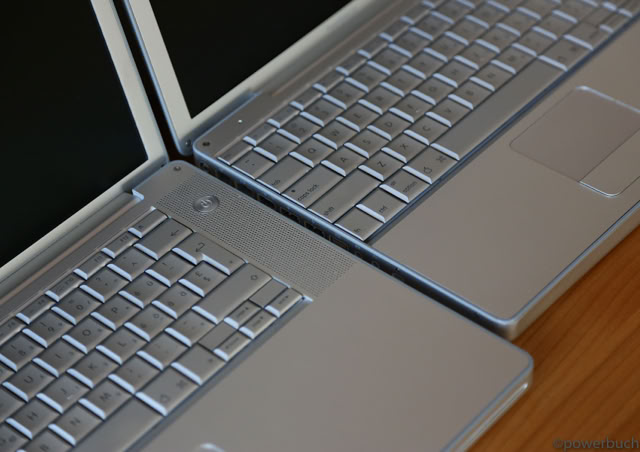

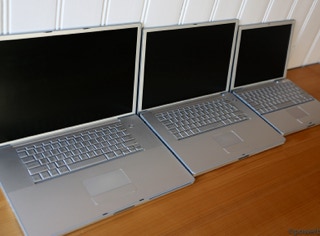

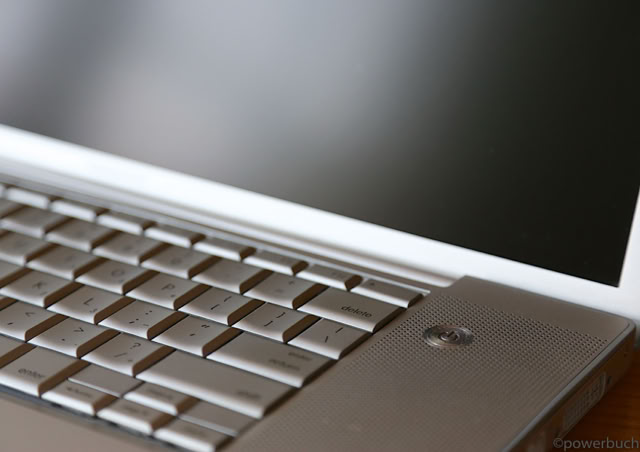

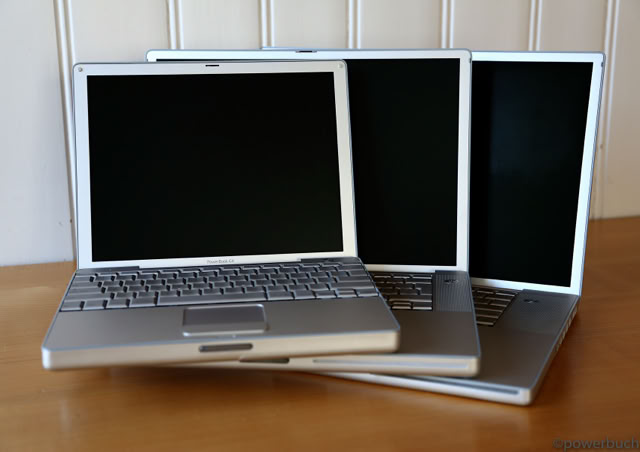

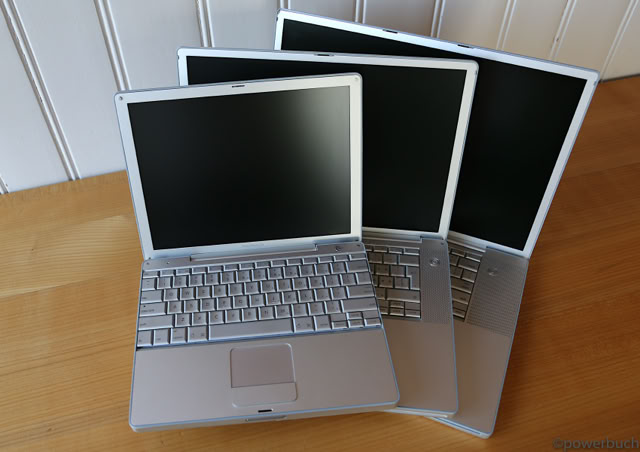

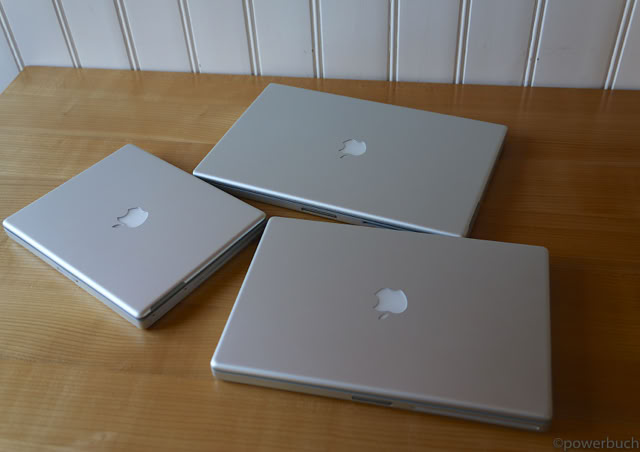

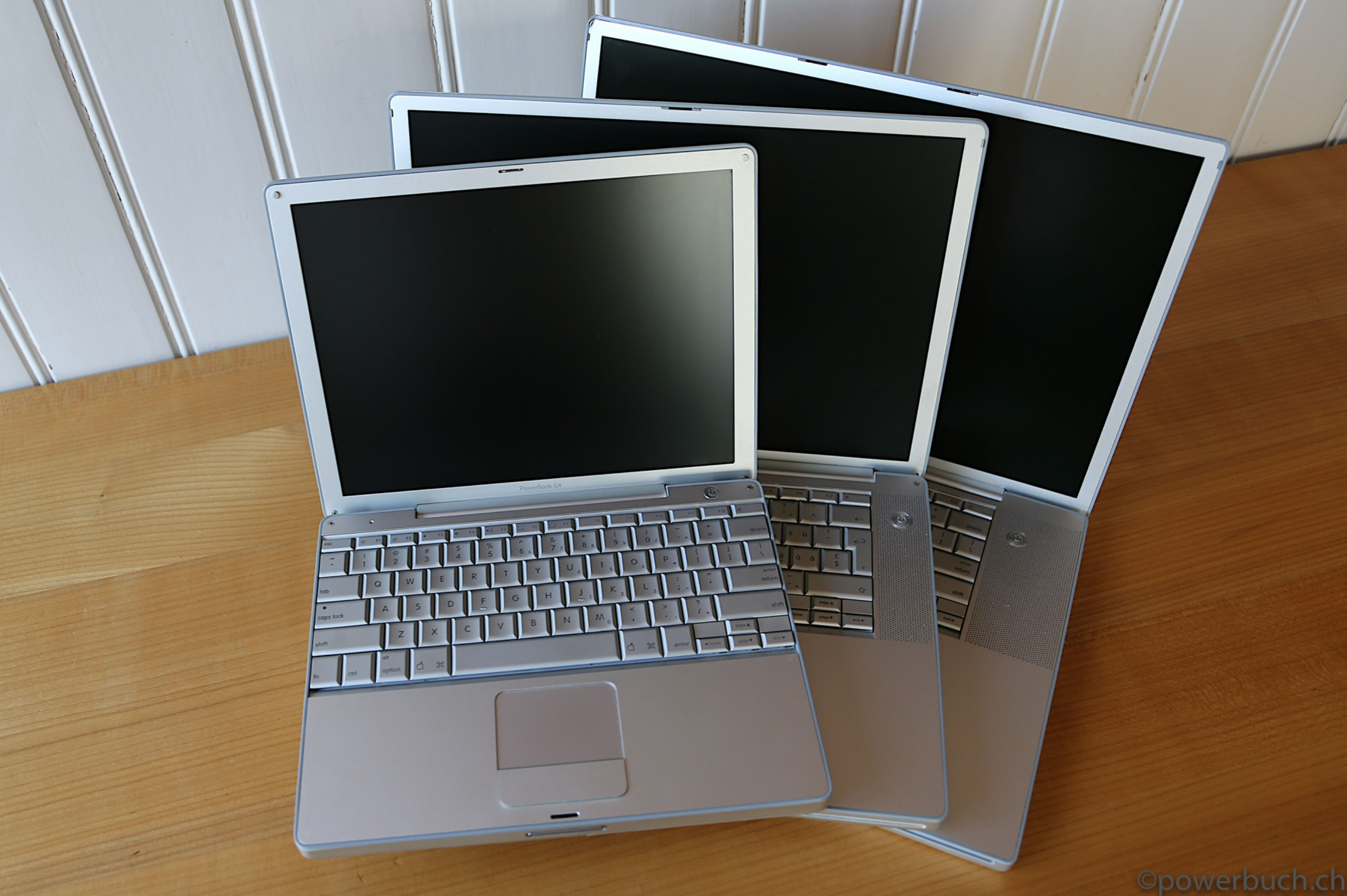

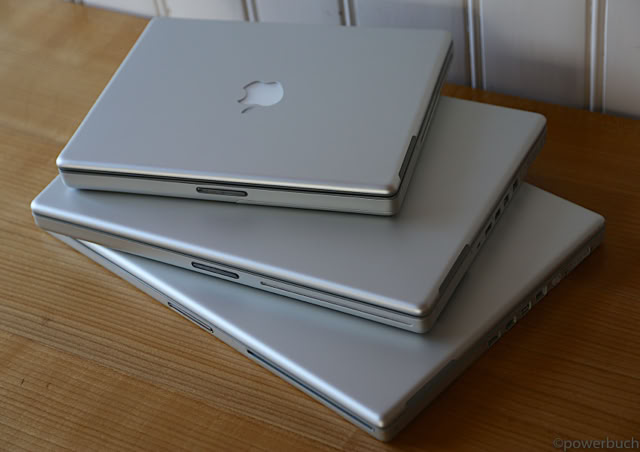

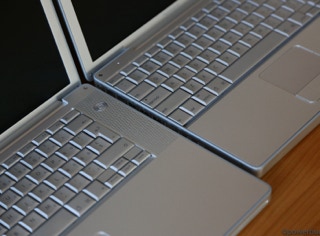

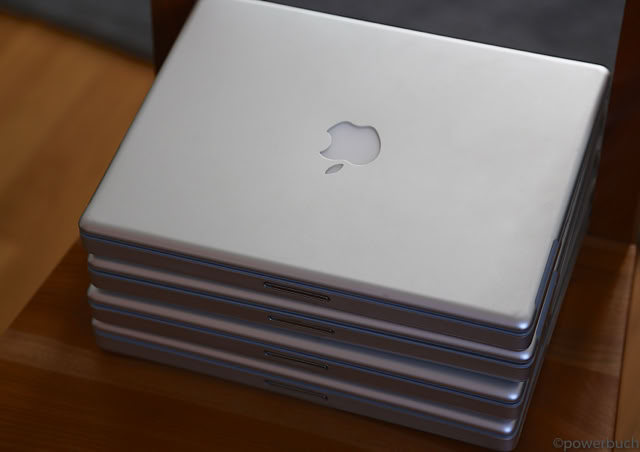

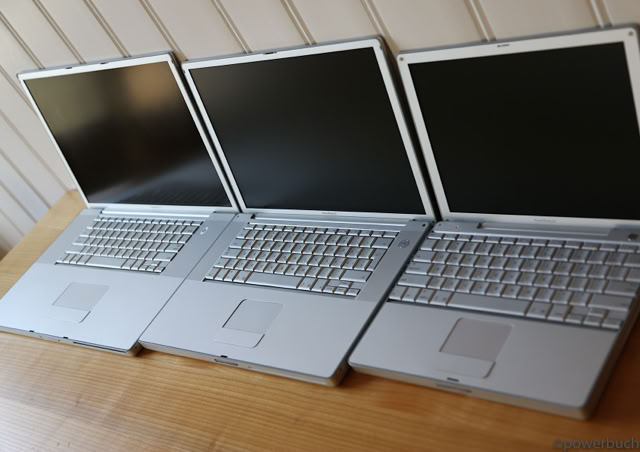

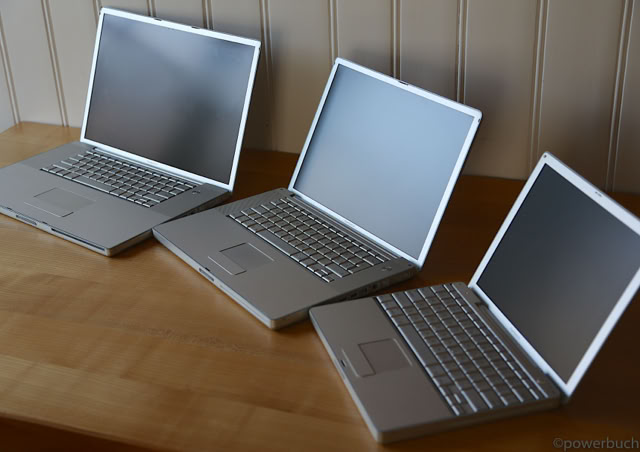

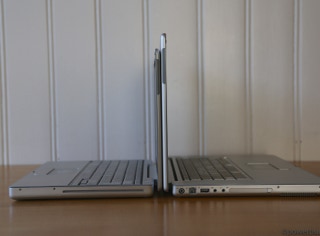

In 2003, apple launched both the largest-screen laptop in the world and apple's smallest full-featured notebook computer. Both machines were made of anodized aluminum, featured DVD-burning capabilities, airport extreme networking, bluetooth, and 12.1-inch or 17-inch LCD displays. The 17-inch model included a fiber optic-illuminated keyboard, which eventually became standard on all 15-inch and 17-inch powerbooks. Two ambient light sensors, located under each speaker grille, adjusted the brightness of the backlit keyboard and the display according to the light level.

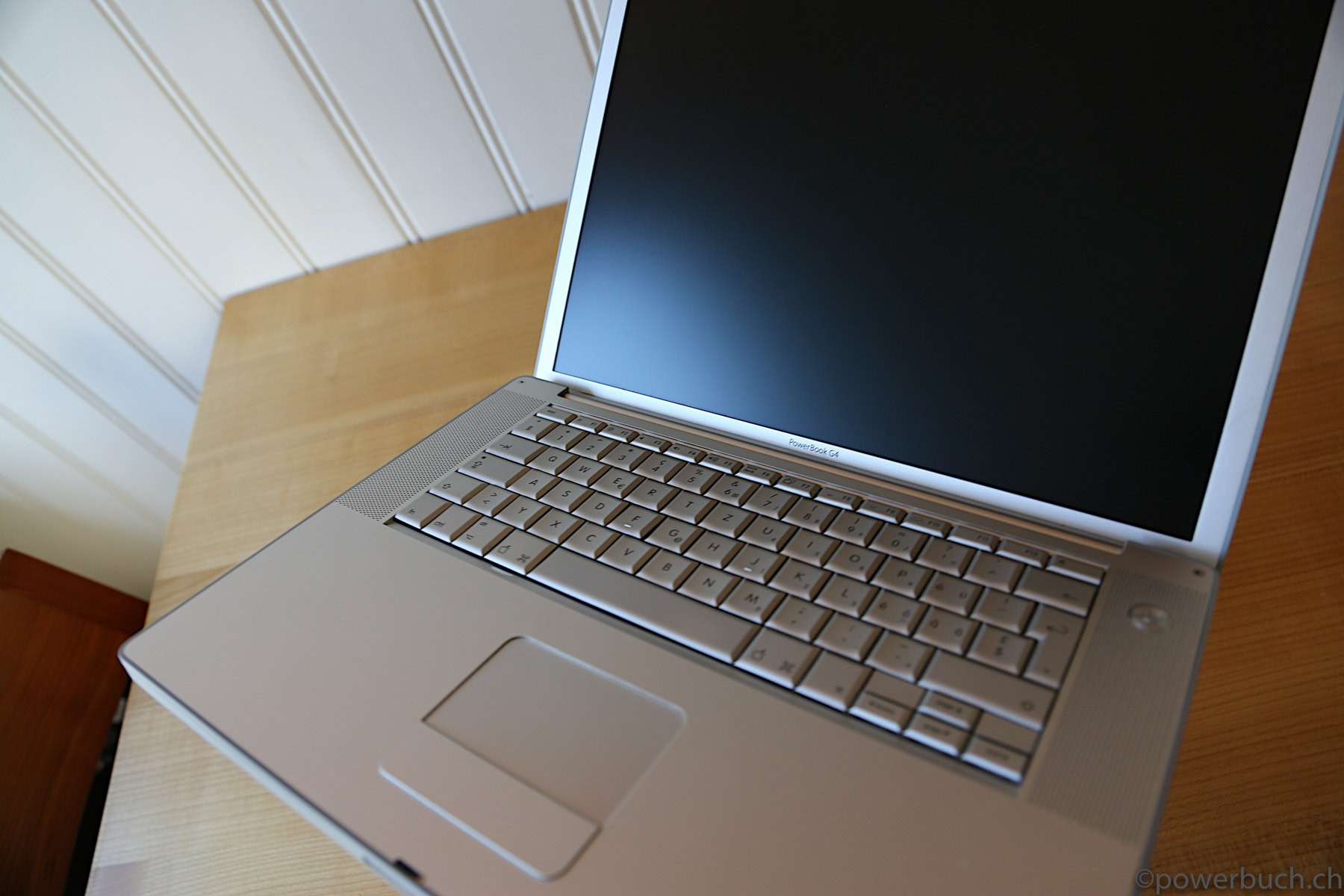

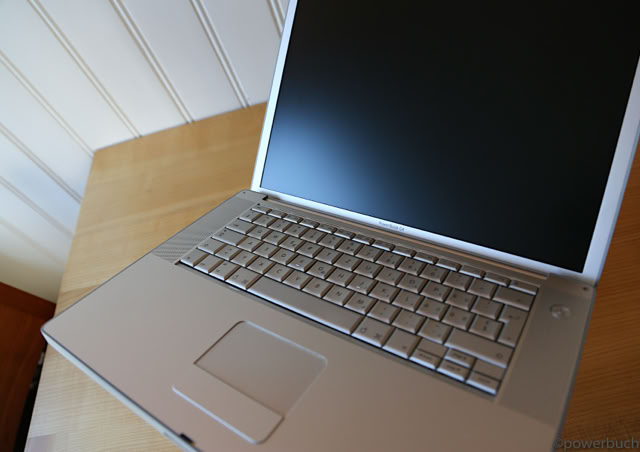

Later in 2003, the 15-inch powerbooks were redesigned and featured the same aluminum body style as their smaller and larger siblings, and with the same feature set as the 17-inch model (including the backlit keyboard). This basic design would carry through the transition to the Intel-based macbookpro, lasting until late 2008.



In april 2004, the aluminum powerbooks were upgraded. The superdrive was upgraded to 4× burning speed for dvds, the fastest processor available was upgraded to 1.5 GHz, and the graphics cards were replaced with newer models, offering up to 128 MB of video memory.



In january 2005, the specifications of the aluminum powerbooks were revised once more to accompany a price decrease. Processor speeds were increased to a maximum of 1.67 GHz on the higher specification 15-inch and all 17-inch versions, while the lower specification 15-inch model and the 12-inch unit saw an increase in speed to 1.5 GHz.  The superdrive now included DVD+R capability.
